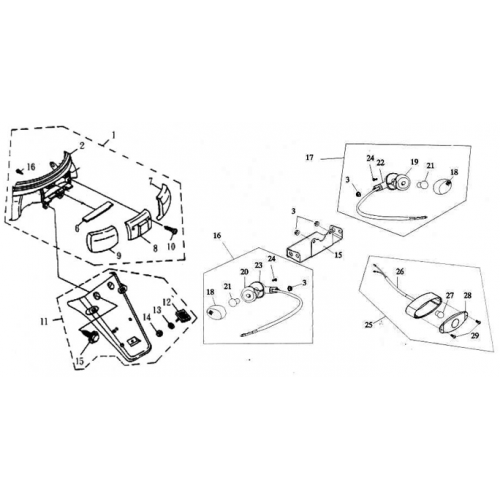

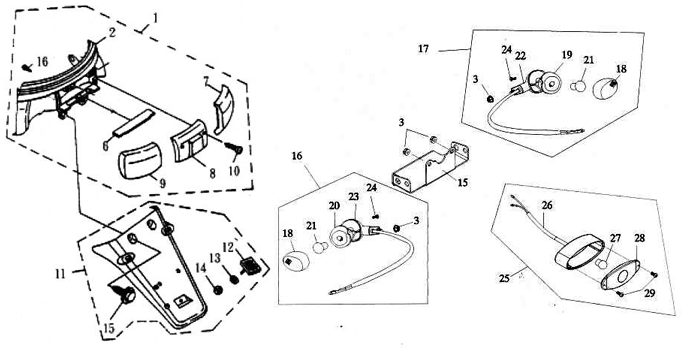

Tail Light (Silver Fox 50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Tail Light Cover Ass'Y
33709-188-000
|
$22.82 $17.12 | ||
| 2 |
Rear Light Cover Socket
33734-188-000
|
|||
| 3 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 $0.63 | ||
| 4 |
Pan Phillips Bolt, 4*12
93500-04012
|
$3.35 $2.51 | ||
| 5 |
Tail Light Fix Bracket
50357-188-000
|
$19.77 $14.83 | ||
| 6 |
Number Cover
33705-116-000
|
$4.82 $3.61 | ||
| 7 |
Rear Right Signal Cover
33731-188-000
|
$14.69 $11.02 | ||
| 8 |
Tail Light Cover Gray
33733-188-000
|
$19.31 $14.48 | ||
| 9 |
Rear Left Signal Cover
33732-188-000
|
$14.69 $11.02 | ||
| 10 |
Tapping Screw Truss Head Phillips, 4*16
93903-04016K
|
$0.25 $0.19 | ||
| 11 |
Rear Fender
80115-116-000
|
$11.60 $8.70 | ||
| 12 |
Reflector
33741-105-00A
|
$7.32 $5.49 | ||
| 13 |
Plain Washer, 5*14*1
94101-0514010K
|
$0.75 $0.56 | ||
| 14 |
Hex Nut, 5mm
94001-05000
|
$0.42 $0.31 | ||
| 15 |
Hex Bolt, 6*18 (18mm)
92000-06018-10K
|
$1.00 $0.75 | ||
| 16 |
Left Rear Signal Ass'Y(Dot)
33445-188-000
|
$21.09 $15.82 | ||
| 17 |
Right Rear Signal Ass'Y (Dot)
33446-188-000
|
$28.53 $21.40 | ||
| 18 |
Signal Cover(Dot)
33402-188-000
|
$6.34 $4.75 | ||
| 19 |
Rear R. Signal Bulb Socket
33447-188-000
|
$9.15 $6.86 | ||
| 20 |
Rear L. Signal Bulb Socket
33448-188-000
|
$10.14 $7.61 |
