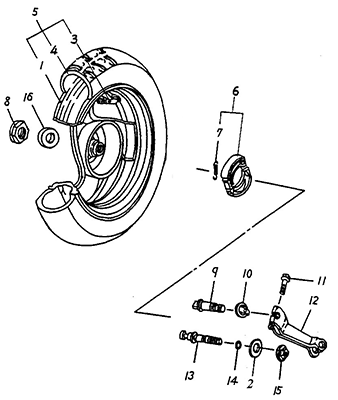

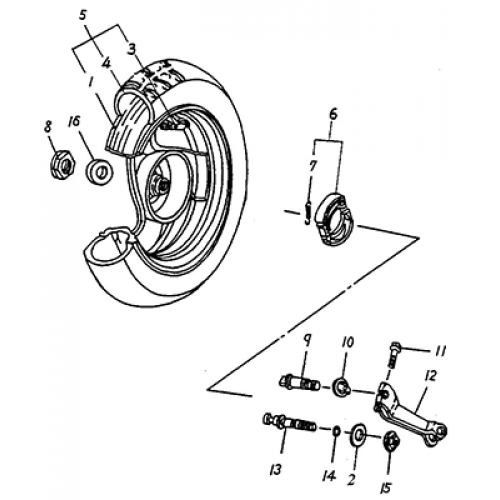

Rear Wheel (10")

Change Assembly

Rear Wheel (10")
# Product Name Req'd Price:
1 Rear Rim
42801-116-000
2 Plain Washer, 8*15*1.5
94101-0815015C
$0.50
3 Air Nozzle
42616-104-000
$7.32
4 Rear Tire 130/90-10
42811-109-000
5 Rear Tire Set
42812-116-000
6 Rear Brake Shoe Ass'Y
43120-110-001
$34.64
7 Rear Brake Shoe Strain Spring
43151-104-000
8 Nylon Nut, M14
90350-14000G
$2.59
9 Brake Cam Shaft
43141-101-001
$11.72
10 Indicator Plate
43145-104-000
$1.42
11 Hex Flange Bolt, 6*30
96000-06030-10B
$1.33
12 Rear Brake Arm
43410-116-000
$9.52
13 Rear Brake Fix Shaft
45110-116-000
$9.52
14 Hex Flange Nut With Serration, 8mm
94050-08000C
$0.84
16 Plain Washer, 15*29*3
94105-1529030G
$2.85
Showing 1 to 15 of 15 (1 Pages)
