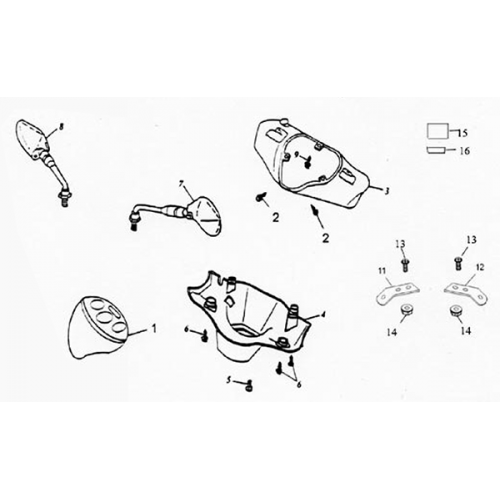

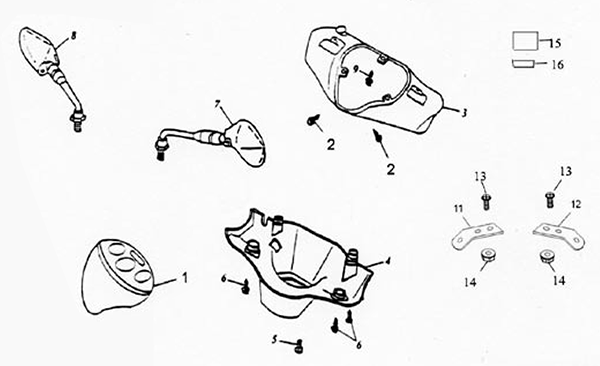

Headlight | Rear View Mirror (Lambretta UNO150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Trim.Speedometer Lid
64212-125-000
|
$22.94 | ||
| 2 |
Tapping Screw Truss Head Phillips, 4*16
93903-04016K
|
$0.25 | ||
| 3 |
Speedometer Up Lid
53211-125-000
|
$37.82 | ||
| 4 |
Speedomter Down Lid
53205-125-000
|
$22.82 | ||
| 5 |
Pan Phillips Bolt, 5*12
93500-05012B
|
$0.84 | ||
| 6 |
Tapping Screw Truss Head Phillps, 5*16
93903-05016K
|
$0.72 | ||
| 7 |
R.Rear View Mirror
88110-125-001
|
$21.25 | ||
| 8 |
L.Rear View Mirror
88120-125-001
|
$21.09 | ||
| 9 |
Tapping Screw Truss Head Phillips, 4*12
93903-04012K
|
$0.25 | ||
| 11 |
F/R Signal Bracket
33403-188-000
|
$5.49 | ||
| 12 |
F/L Signal Bracket
33406-188-000
|
$5.13 | ||
| 13 |
Pan Phillips Bolt, 3*8
93500-03008C
|
$2.01 | ||
| 14 |
Hex Nut, 3mm
94001-03000C
|
$0.84 | ||
| 15 |
Sticker Warning
87706-125-000
|
|||
| 16 |
Tire Sticker
87707-125-000
|
