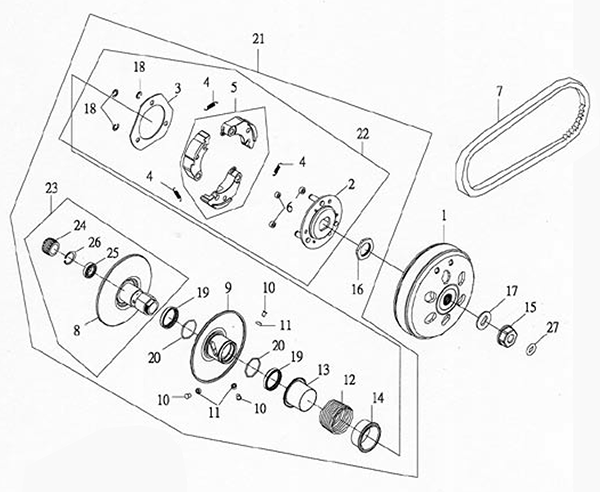

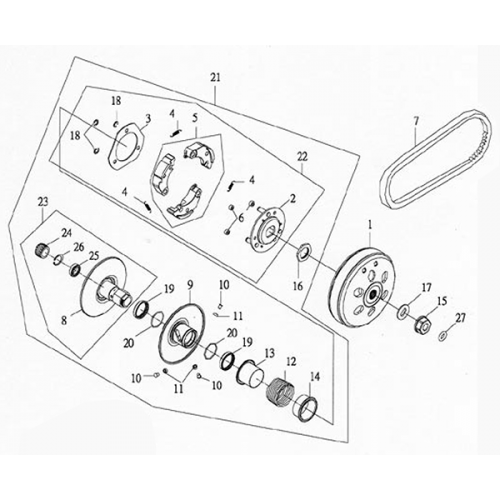

Driven Face (Lambretta UNO150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Clutch Cover Comp
22100-250-000
|
$35.01 | ||
| 2 |
Drive Plate Comp
22350-120-000
|
|||
| 3 |
Plate Clutch Side
22351-120-000
|
$7.32 | ||
| 4 |
Spring Clutch
22401-197-000
|
|||
| 5 |
Clutch Weight Set
22535-197-000
|
|||
| 6 |
Clutch Damper Rubber
22804-120-000
|
$2.09 | ||
| 7 |
Drive Belt, 743*20*30
23100-120-000
|
|||
| 8 |
Face Ass'Y Driven
23210-120-000
|
$31.63 | ||
| 9 |
Secondary Sliding Slot Wheel
23220-250-000
|
|||
| 10 |
Guide Pin
23225-120-000
|
|||
| 11 |
Guide Pin
23226-120-000
|
$3.35 | ||
| 12 |
Compression Spring, 66KM
23233-197-000
|
$15.82 | ||
| 13 |
Secondary Spring Seat
23237-120-000
|
$7.32 | ||
| 14 |
Spring Coller
23238-120-000
|
$5.86 | ||
| 15 |
Flange Nut, 12mm
90201-120-000
|
$3.35 | ||
| 16 |
Hex Nut, 28mm
90202-120-000
|
$4.69 | ||
| 17 |
Plain Washer, 12*29*2.5
94101-1229025A
|
$2.01 | ||
| 18 |
External Cir Clip, ETW-7
94511-0700E
|
$0.50 | ||
| 19 |
Oil Seal, 34*41*4
96500-34414
|
$4.18 | ||
| 20 |
Oil Ring, 36*2
91336-104-000
|
$2.51 |
