C.D.I (ADLY GTC-50)

Change Assembly

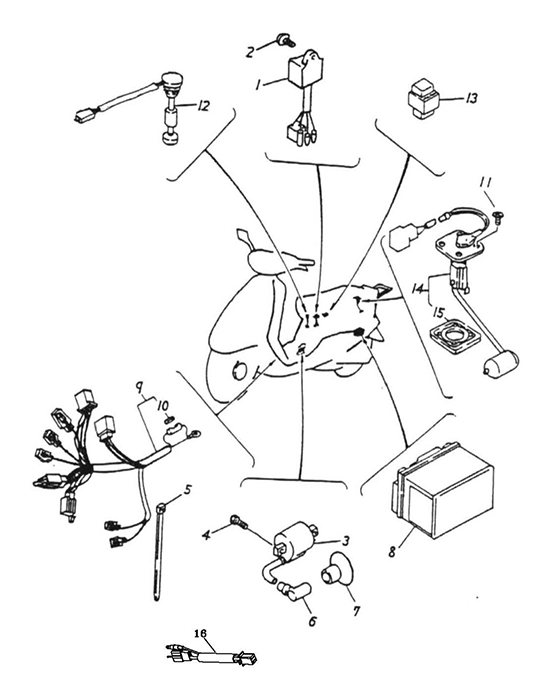

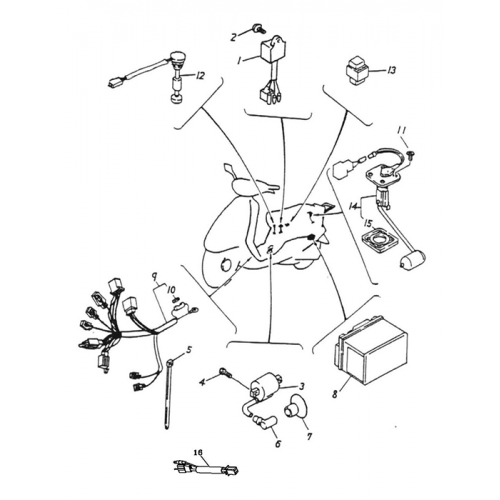

C.D.I (ADLY GTC-50)
# Product Name Req'd Price:
1 C.D.I Unit, JET-100
30410-117-002
2 Pan Phillips Bolt, 6*15
93500-06015B
$0.67
3 High Tension Coil, L=300
30510-110-000
4 Hex Flange Bolt, M6*20
96000-06020-10G
$1.84
5 Cable Tie, 4.8*200m/m
90669-101-000
$0.67
6 Spark Plug Cap, 10KOM
30700-101-001
$6.25
7 Rubber Cap
30605-116-000
8 Battery BTX4L-BS
31500-116-000
9 Main Wire Harness
32100-361-000
$93.63
10 Fuse, 7A
98200-106-000
$3.35
11 Round Phillips Bolt, 5*12
93000-05012C
$0.33
12 Oil Level Gauge
35410-116-000
13 Starting Relay
38501-105-0A1
14 Petrol Gauge Ass'Y
37800-116-000
$32.95
15 Fuel Lever Gauge Gasket
37801-101-000
$3.77
16 Wire
32126-361-000
$7.32
17 Cable Tie, 3*150 m/m
90669-168-000
$0.50
Showing 1 to 17 of 17 (1 Pages)
