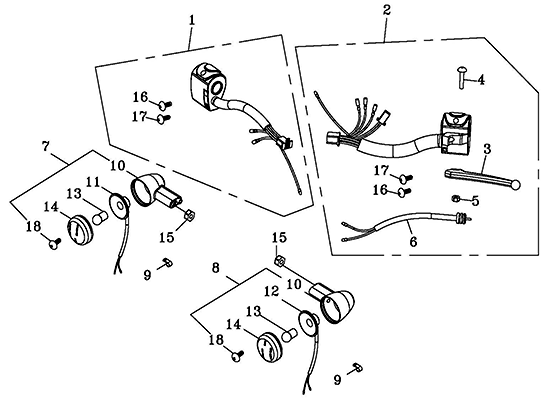

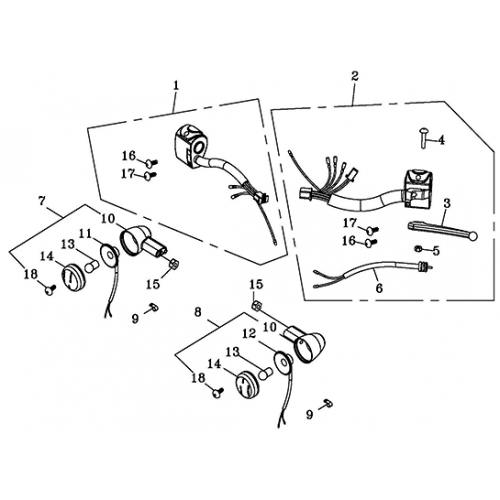

Front Signal | Handle Lever (Adly BullsEye 50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
R.Handle Switch Ass'Y
35150-159-00A
|
$37.82 | ||
| 2 |
L.Handle Switch Ass'Y
35200-162-000
|
$59.14 | ||
| 3 |
Left Lever
53178-107-000
|
$12.54 | ||
| 4 |
Left Lever Set Bolt, 5*23
90116-107-000
|
$0.59 | ||
| 5 |
Nylon Insert Lock Nut, 5mm
90350-05000
|
$0.33 | ||
| 6 |
L.Brake Switch Wire
35345-111-000
|
$7.32 | ||
| 7 |
R.Front Signal Ass'Y
33400-361-000
|
$45.45 | ||
| 8 |
L.Front Signal Ass'Y
33450-361-000
|
$45.38 | ||
| 9 |
Cable Clamp
11352-145-000
|
$1.21 | ||
| 10 |
Signal Socket
33451-361-000
|
|||
| 11 |
Signal Bulb Socket
33425-361-000
|
|||
| 12 |
L.Sigbal Bulb Socket
33435-361-000
|
|||
| 13 |
Bulb (E-Mark), 12V/21W
34905-226-000
|
$10.54 | ||
| 14 |
R. Signal Cover, W012-02RL/C
33410-312-00A
|
|||
| 15 |
Hex Flange Nut With Serration, 10mm
94050-10000C
|
$1.26 | ||
| 16 |
Pan Phillips Bolt, 5*20
93500-05020K
|
$0.59 | ||
| 17 |
Pan Phillips Bolt(Black Zinc), 5*25
93500-05025K
|
$0.42 | ||
| 18 |
Pan Phillips Screw, 3.5*10
93905-03510C
|
$1.00 |
