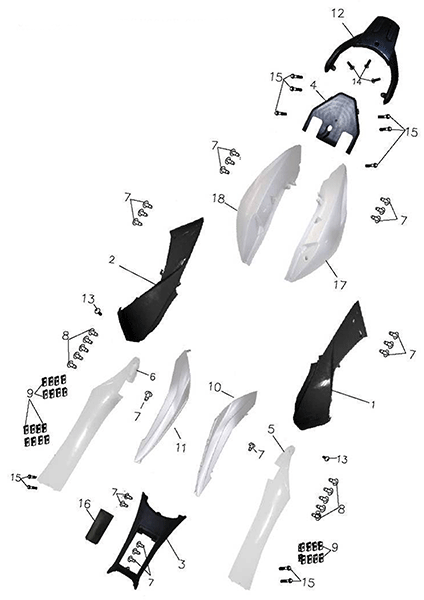

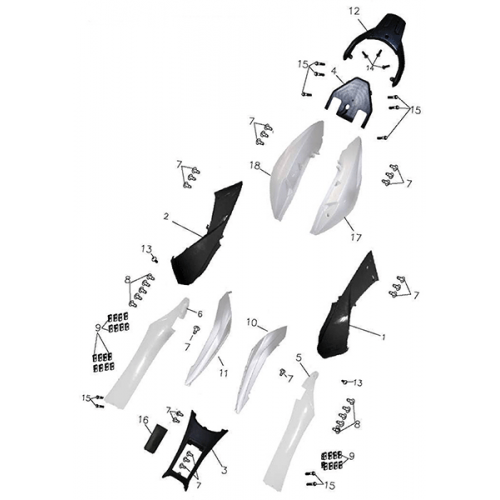

Body Cover (Luggage Carrier) (Adly GTA-50 2010)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Left Body Cover (Metal White)
83600-381-000JW
|
|||
| 2 |
Right Body Cover (Metalwhite)
83500-381-000JW
|
|||
| 3 |
Cover Battery Box
31506-381-000
|
|||
| 4 |
Fuel Tank Protect Cover
81301-381-000
|
|||
| 5 |
Side Cover, Left
83603-381-000
|
|||
| 6 |
Right Side Cover (Metal White)
83503-381-000JW
|
|||
| 7 |
Tapping Screw Truss Head Phillips, 4*12
93903-04012K
|
|||
| 8 |
Tapping Screw Truss Head Phillips, 4*16
93903-04016K
|
$0.25 | ||
| 9 |
U Plate Nut, 4mm
90344-04000K
|
$0.84 | ||
| 10 |
Body Cover Trim (Lh) (Metal White)
83604-381-000JW
|
|||
| 11 |
Body Cover Trim (Rn) (Metal White)
83504-381-000JW
|
|||
| 12 |
Luggage Carrier Set (Sand Black)
81200-381-000NK
|
|||
| 13 |
Pan Flat Head Phillips Bolt (G, 6*16
93701-06016G
|
|||
| 14 |
Hex Socket Bolt (Black Zinc), 8*28
91000-08028K
|
|||
| 15 |
Hex Bolt (Black Zinc), 6*20
92000-06020-10K
|
$0.67 | ||
| 16 |
Battery Cover
64311-381-000
|
|||
| 17 |
Rear Cover. L (Metal White)
83513-381-000JW
|
|||
| 18 |
Rear Cover. R (Metal White)
83514-381-000JW
|
