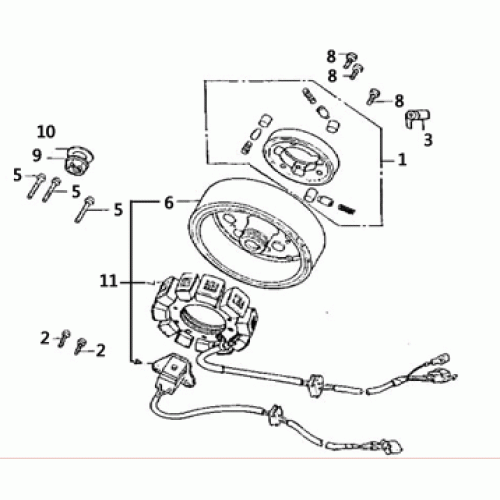

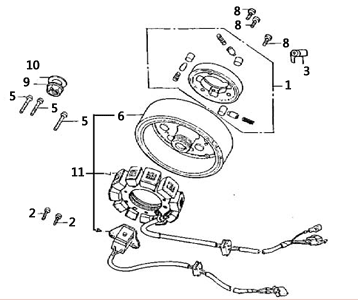

Generator (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Starting Clutch
28121-SBH0-0000
|
|||
| 2 |
Bolt, Hex Flange M5*16
96010-05016
|
|||
| 3 |
Clamper, A.C.Generator Cord
32961-SBH0-0000
|
$1.40 | ||
| 4 |
Pulse Cord Assy., A.C.G
31130-SBH0-0000
|
|||
| 5 |
Bolt, Hex M5*35
96010-05035
|
|||
| 6 |
Flywheel Comp.
31110-SBH0-0000
|
$57.49 | ||
| 7 |
Stator Comp.
31120-SBH0-0000
|
$124.92 | ||
| 8 |
Bolt, Hex In M6*14
96050-06014
|
|||
| 9 |
Nut, Flange M14*1.25
90200-14E01-0A
|
|||
| 10 |
Washer,Stop
94110-14E01-ST
|
$2.09 | ||
| 11 |
A.C.Generator Assy.
3110A-SBH0-0000
|
