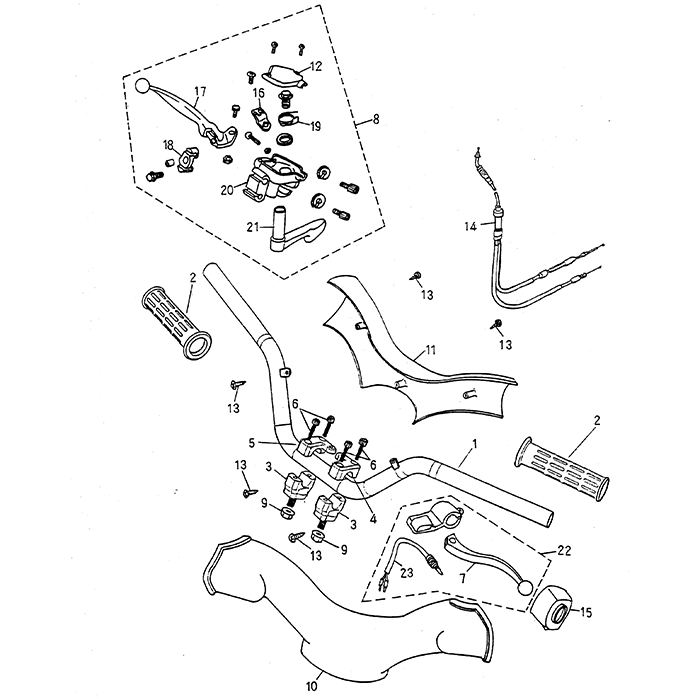

Handle Bar

Change Assembly

Handle Bar
# Product Name Req'd Price:
1 Handle Bar(Rev.3)
53100-145-000
$36.56
2 Handle Grip Set
53166-145-000
3 Handle Bar Bottom Clamp
53101-145-000
4 Left Handle Bar Clamp
53102-145-000
5 Right Handle Bar Clamp
53103-145-000
6 Hex Socket Bolt, 6*25
91000-06025
$1.00
7 Left Lever
53178-145-000
8 Right Lever Ass'Y
53170-145-000
9 Hex Flange Nut With Serration, 10mm
94050-10000
$1.67
10 Front Handle Bar Cover (Blue, Red, Yellow)
64211-145-000
11 Rear Handle Bar Cover (Blue, Red, Yellow)
53205-145-000
12 Lever Body Cover(Adly)
53171-145-000
13 Tapping Screw Truss Head Phillips, 5*16
93903-05016
14 Throttle Cable
17910-145-000
$35.50
15 L. Handle Switch Ass'y (with Headlight)
35200-145-000
16 Throttle Cable Bracket
53174-145-000
$2.01
17 Right Lever
53175-145-000
$14.50
18 Cable Bracket
53173-145-000
$8.79
19 Throtte Lever Spring
53184-145-000
$1.00
20 Lever Bracket
53172-145-000
$15.82
Showing 1 to 20 of 23 (2 Pages)
