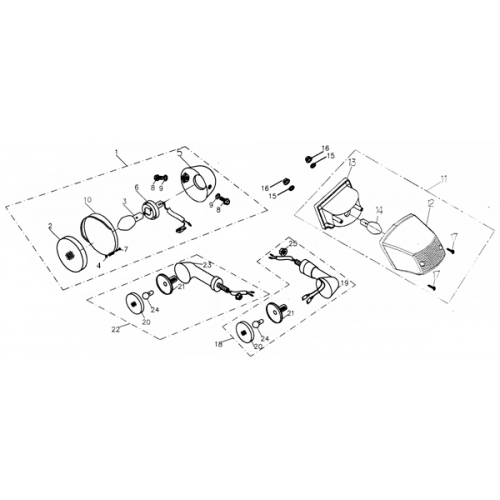

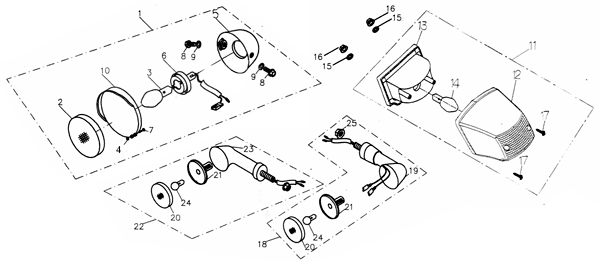

Head Light (DOT), Tail Light (ADLY RT-50 Road Tracer)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Head Light Ass'Y, 12V 60/55W
33100-154-00A
|
|||
| 2 |
Glass, JUTE 9809 DOT
33103-154-00A
|
|||
| 3 |
Head Light Bulb (Sae), 12V60/55W
34901-154-00A
|
|||
| 4 |
Hex Flange Nut With Serration, 4mm
94050-04000
|
|||
| 5 |
Head Light Case
61301-154-00A
|
|||
| 6 |
Head Light Cover
33111-154-000
|
$12.45 $9.34 | ||
| 7 |
Hex Phillips Bolt, 4*30
93500-04030
|
|||
| 8 |
Hex Bolt Bald-Headed, 8*24
92005-08024
|
|||
| 9 |
Spring Washer, 8*14*2
94111-0814020
|
|||
| 10 |
Head Light Ring
33104-154-000
|
|||
| 11 |
Tail Light Ass'Y, E/SAE MARK
33700-154-001
|
$49.17 $36.87 | ||
| 12 |
Tail Light Lens, E/SAE MARK
33702-154-001
|
$11.72 $8.79 | ||
| 13 |
Rear Light Socket
33711-154-000
|
$16.47 $12.36 | ||
| 14 |
Tail Light Bulb, 12V 21/5W
34906-128-000
|
$5.07 $3.80 | ||
| 15 |
Plain Washer, 6.5*15*1
94101-0615010B
|
$0.50 $0.38 | ||
| 16 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 $0.63 | ||
| 17 |
Pan Phillips Screw, 3.5*38
93905-03538
|
$0.84 $0.63 | ||
| 18 |
R.Signal Ass'Y (Dot), 12V 21W
33400-154-00A
|
|||
| 19 |
R.Signal Socket
33401-154-000
|
$32.29 $24.22 | ||
| 20 |
Signal Cover(Dot)
33402-188-000
|
$6.34 $4.75 |
