Starting Motor (LRX/SMC Blast ATV 150)

Change Assembly

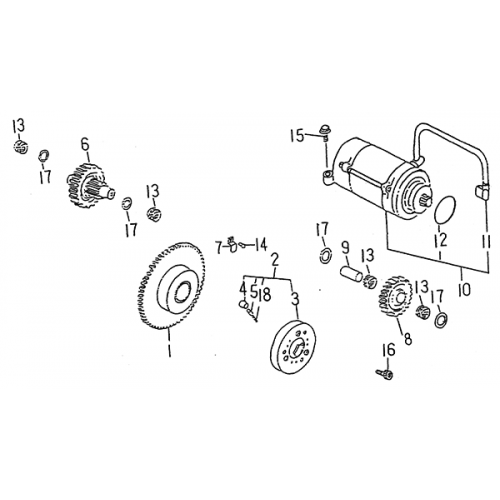

Starting Motor (LRX/SMC Blast ATV 150)
# Product Name Req'd Price:
1 GEAR COMP, STARTING CLUTCH
23524-CHP-00
$34.82
2 STARTING CLUTCH ASS;Y
23570-CHP-00
$47.96
3 OUTER COMP, STARTING CLUTCH
23574-CHP-00
$47.20
4 ROLLER 10*12
23576-CHP-00
$1.39
5 CAP, STARTING CLUTCH ROLLER SPRING
23578-CHP-00
$1.39
6 SHAFT, STARTING GEAR
23612-CHP-00
$23.85
7 PLATE, SET GEAR
23632-CHP-00
$3.50
8 GEAR, REDUCTION
23660-CHP-00
$34.82
9 SHAFT, REDUCTION GEAR 10*45
23663-CHP-00
$4.32
10 MOTOR ASS'Y STARTER
35800-CHP-00
$124.92
11 CABLE, STARTER MOTOR
35831-CHP-00
$12.54
12 O-RING 3.1*24.4
93210-31244
$2.09
13 BEARING, NEEDLE (HK1010)
93310-1014100
$12.55
14 BOLT, FLANGE 6*12
96411-06012-B
$1.05
15 BOLT, FLANGE 6*28
96414-06028-B
$1.05
16 BOLT, SOCKET 8*18
96510-08018-C
$2.79
17 WASHER, PLATE 10.5*18*0.5
97201-101805
$0.82
18 SPRING, STARTING CLUTCH ROLLER
97501-03025
Showing 1 to 18 of 18 (1 Pages)
