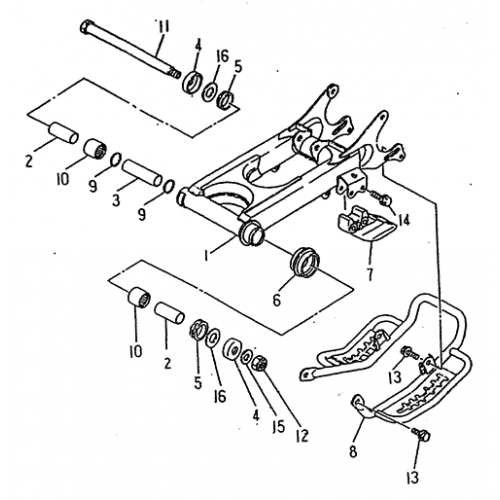

Rear Arm (LRX/SMC Blast ATV 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
REAR ARM
32100-RAM-00
|
$100.46 | ||
| 2 |
BUSH
32115-RAM-00
|
$8.35 | ||
| 3 |
SPACER
32116-RAM-00
|
$8.35 | ||
| 4 |
COVER, THRUST
32118-RAM-00
|
$4.18 | ||
| 5 |
OIL SEAL
32119-RAM-00
|
$4.25 | ||
| 6 |
SEAL, GUARD
32160-RAM-00
|
$8.35 | ||
| 7 |
SUPPORT, CHAIN
32165-RAM-00
|
$12.54 | ||
| 8 |
COVER
32190-RAM-00
|
$31.38 | ||
| 9 |
O-RING 2.5*20
93210-25200
|
$1.39 | ||
| 10 |
BEARING, NEEDLE ROLLER HK-2220
93310-222820
|
$12.60 | ||
| 11 |
SHAFT, PIVOT
94610-15258-B
|
$8.37 | ||
| 12 |
NUT, LOCK 14MM
95301-142212-B
|
$1.39 | ||
| 13 |
BOLT, FLANGE
96414-08012-B
|
$1.26 | ||
| 14 |
BOLT, FLANGE
96414-08040-B
|
$1.39 | ||
| 15 |
WASHER, PLATE 14.2*28.4*2.0
97201-142820-B
|
$1.26 | ||
| 16 |
WASHER, PLATE
97201-243820
|
$1.39 |
