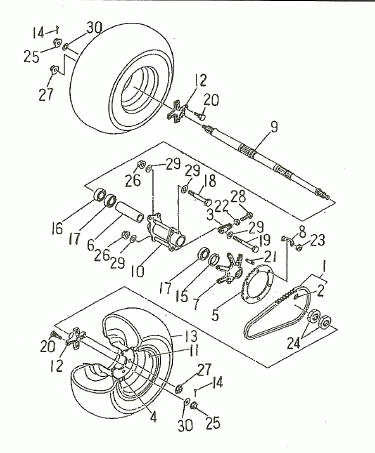

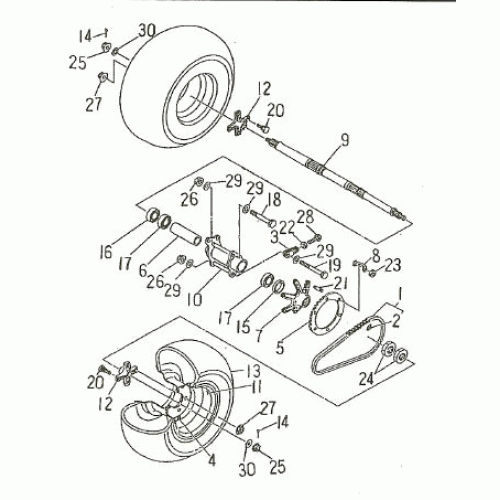

REAR WHEEL (Kasea Skyhawk 150/170 Quad)

Change Assembly

REAR WHEEL (Kasea Skyhawk 150/170 Quad)
# Product Name Req'd Price:
1 CHAIN 520H*92L
25741-RAM-01
$38.42
2 JOINT, CHAIN
25742-RAM-00
$6.82
3 ADJUSTER, CHAIN
32120-RAM-00
$11.14
4 VALVE, RIM
42570-RAM-00
$3.49
5 SPROCKET, DRIVEN 40T
42812-RAM-00
$34.82
6 SPACER, BEARING
42815-RAM-00
$5.58
7 COLLAR, SPROCKET AXLE
42821-RAM-00
$57.74
8 WASHER, LOCK
42823-RAM-00
$1.05
9 AXLE, WHEEL
42835-RAM-00
10 HUB, REAR
42881-RAM-00
$89.17
11 WHEEL, REAR 8*8.0AT
42882-RAM-00
$56.60
12 COLLAR, WHEEL
42885-RAM-00
$42.02
13 Rear Tire AT 21x10-8
42890-RAM-00
14 PIN, COTTER 2.9*25
90240-29025-B
$0.35
15 OIL SEAL 42*62*8
93110-42628
$11.99
16 OIL SEAL 44*62*8
93110-44628
$11.30
17 BEARING, RSDIAL BALL 6007RS
93320-356214
$22.59
18 BOLT
94610-10174-B
$4.18
19 BOLT
94610-10178-B
$4.88
20 BOLT, RIBBED NECK
94710-10032-C
$2.79
Showing 1 to 20 of 30 (2 Pages)
