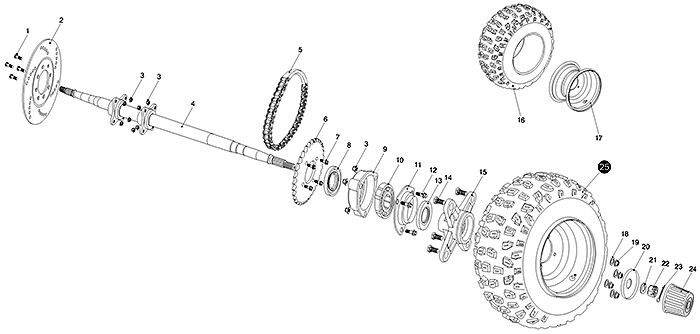

Rear Housing (Kasea LM150IIR 2003)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Bolt-Washer M8X1.25X22
9.108.022
|
|||
| 2 |
RR Brake Disc
8.010.053
|
$57.49 | ||
| 3 |
Nut, Flange Lock M8
9.220.008
|
|||
| 4 |
Kasea LM150IIR Rear Axle
8.010.057
|
|||
| 5 |
Drive Chain
9.070.001
|
|||
| 6 |
Rear Sprocket
8.010.077
|
$46.82 | ||
| 7 |
Bolt-Washer M8X1.25X27
9.108.027
|
$5.02 | ||
| 8 |
Dust Seal 50X34-7
9.040.006
|
$2.44 | ||
| 9 |
Housing Comp, Rr. Axle Brg
8.030.008
|
$11.92 | ||
| 10 |
Bearing 6206
97100-00206-OB
|
$18.83 | ||
| 11 |
Bearing Base
8.020.028
|
$4.88 | ||
| 12 |
Bolt-Washer M8X1.25X40
9.108.040
|
$4.88 | ||
| 13 |
Dust Seal 42X30-7
9.040.007
|
$2.65 | ||
| 14 |
Bolt, Tire M10X1.25X28
9.710.028
|
|||
| 15 |
Hub, Rr. Axle
8.010.056
|
$42.02 | ||
| 16 |
Rear Tire 22X10-10
6.000.052-I
|
$113.46 | ||
| 17 |
Close out Rim
6.000.003G
|
$29.35 | ||
| 18 |
Flat Washer 8
9.300.010
|
|||
| 19 |
Nut. Flange Lock M10
9.220.010
|
$2.72 | ||
| 20 |
Holder, Rr. Wheel Cap
8.020.029
|
$3.49 |
