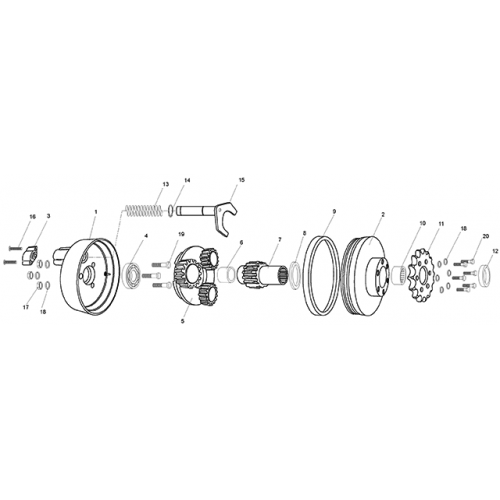

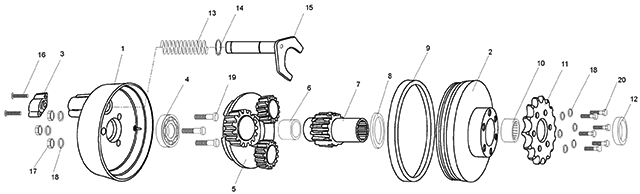

Reverse Assy (Kasea LM150IIR 2000)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Gear Case, R
8.030.016
|
|||
| 2 |
Gear Case, L
8.030.017
|
|||
| 3 |
Cover, Gear Shiting Yoke
8.030.018
|
|||
| 4 |
Bearing 6003 Ddu
9.030.004
|
|||
| 5 |
Counter Gear Shaft Comp.
6.000.033
|
|||
| 6 |
Bushing, Drive Gear
8.010.064
|
|||
| 7 |
Drive Gear
8.010.065
|
|||
| 8 |
Collar, Drive Gear
8.020.059
|
|||
| 9 |
Rubber Oil Seal
7.020.017
|
|||
| 10 |
Needle Bearing 28X35X20
9.030.005
|
|||
| 11 |
Drive Sprocket
8.010.061
|
|||
| 12 |
Internal Collar
8.010.066
|
|||
| 13 |
Spring, Lever
8.040.003
|
|||
| 14 |
Cir Clip 12
9.700.112
|
|||
| 15 |
Gear Shifting Yoke
8.010.067
|
|||
| 16 |
Screw. Pan. M6X20
9.600.620
|
|||
| 17 |
Nut, M4
9.200.004
|
$0.91 | ||
| 18 |
Washer Lock D5
9.400.005
|
|||
| 19 |
Bolt. M8X1.25X40
9.100.840
|
$1.88 | ||
| 20 |
Bolt, M8X25
9.100.825
|
