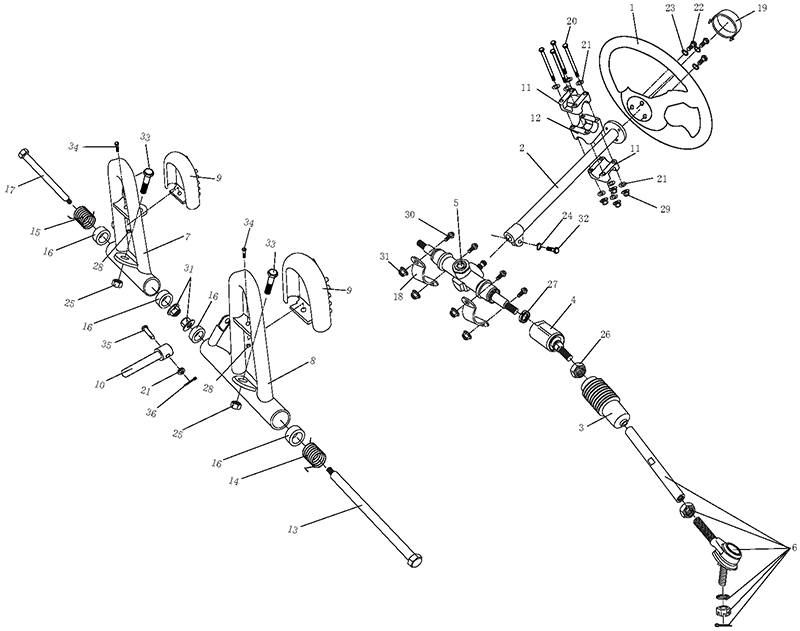

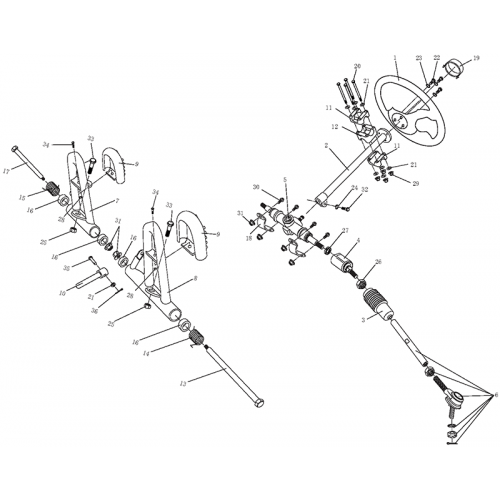

Steering Shaft Assembly (Kasea Adventure Buggy 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Steering Comp.
7.020.010
|
|||
| 2 |
Steering Shaft
6.000.030
|
|||
| 3 |
Ball Joint Dust Cover
7.020.002
|
|||
| 4 |
Steering Ball Joint
4.000.008
|
|||
| 5 |
Steering Gear
4.000.013
|
|||
| 6 |
Tie Rod
6.000.018
|
|||
| 7 |
Pedal Comp., Throttle
4.000.006
|
|||
| 8 |
Brake Pedal Comp
4.000.005
|
$21.97 $16.47 | ||
| 9 |
Rubber, Pad
7.020.004
|
|||
| 10 |
Push Rod, Master
8.010.004
|
|||
| 11 |
Steering Shaft Holder,Top & Bottom
7.010.010
|
|||
| 12 |
Steering Shaft Holder, Center
7.010.009
|
|||
| 13 |
Bolt, Brake Pedal
8.010.029
|
|||
| 14 |
Spring. Brake Pedal Return
8.040.001 (RH)
|
|||
| 15 |
Spring. Throttle Pedal Return
8.040.001 (LH)
|
|||
| 16 |
Collar, Pedal
7.010.004
|
|||
| 17 |
Bolt, Throttle Pedal
8.010.030
|
|||
| 18 |
Steering Gear Bracket
8.020.014
|
|||
| 19 |
Cover, Steering Bolt
7.010.014
|
|||
| 20 |
Bolt M6X70
9.100.001
|
