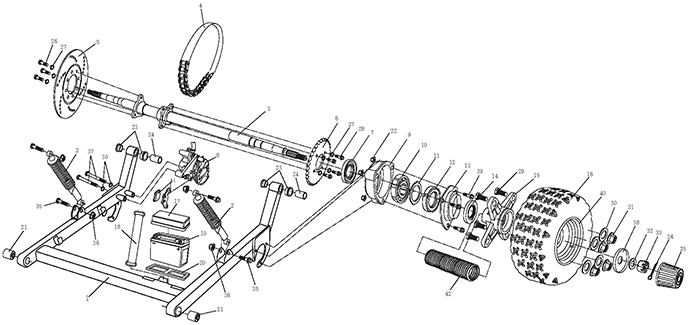

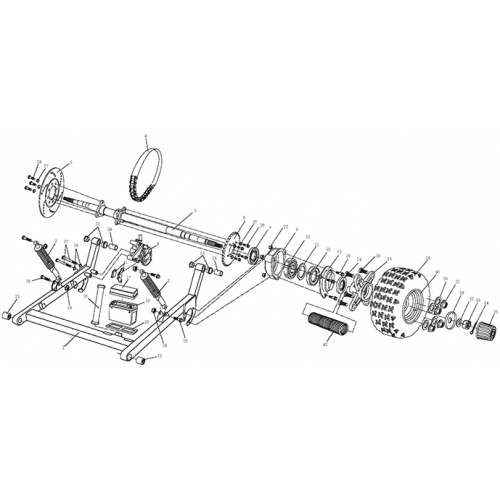

Rear Wheel | Rear Swing Assy (Kasea Adventure Buggy 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Swing Arm Comp.
2.000.002
|
|||
| 2 |
Absorber Assy. Rr.
6.000.006
|
$93.86 $70.39 | ||
| 3 |
Kasea LM150IIR Rear Axle
8.010.057
|
|||
| 4 |
Drive Chain
9.070.001
|
|||
| 5 |
RR Brake Disc
8.010.053
|
$57.49 $43.12 | ||
| 6 |
Rear Sprocket
8.010.052
|
|||
| 7 |
Dust Seal 50X34-7
9.040.006
|
$2.44 $1.83 | ||
| 8 |
Caliper Assy. Rr.
6.000.029
|
$113.46 $85.09 | ||
| 9 |
Housing Comp, Rr. Axle Brg
8.030.008
|
$11.92 $8.94 | ||
| 10 |
Bearing 6206
97100-00206-OB
|
$18.83 $14.12 | ||
| 11 |
Lock Washer 30
9.300.011
|
|||
| 12 |
Circle Nut (M30)
9.200.017
|
|||
| 13 |
Bearing Base
8.020.028
|
$4.88 $3.66 | ||
| 14 |
Dust Seal 42X28-7
9.040.003
|
|||
| 15 |
Hub, Rr. Axle
8.010.056
|
$42.02 $31.52 | ||
| 16 |
Rear Tire 18x9.5-8
6.000.004
|
$0.00 | ||
| 17 |
Cover, Battery
7.010.019
|
|||
| 18 |
BATTERY BAND
70000-10125-AB
|
|||
| 19 |
Battery
6.000.016
|
|||
| 20 |
Cushion, Battery
7.020.007
|
