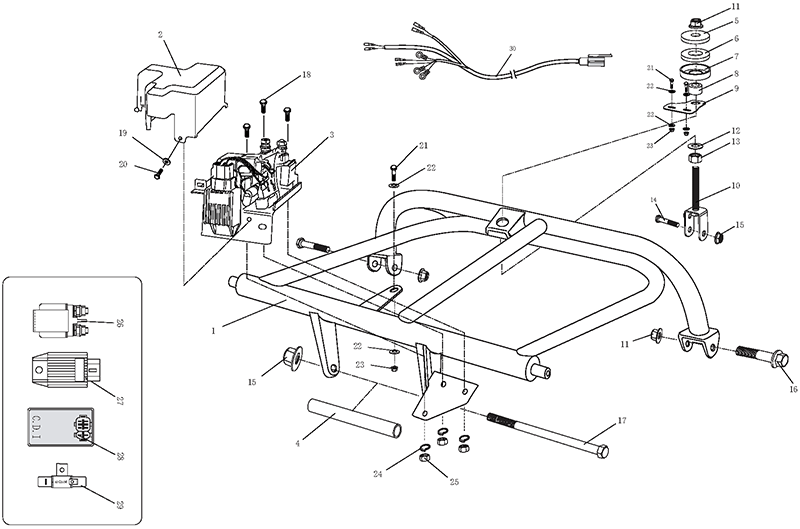

Rear Swing Arm (Top) (Kasea Adventure Buggy 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Swing Arm Comp., Top
2.000.003
|
|||
| 2 |
Cover, Electric Box
7.010.013
|
|||
| 3 |
Box Comp, Electric
6.000.022
|
|||
| 4 |
Spacer, Engine Mount
8.010.025
|
$3.35 $2.51 | ||
| 5 |
Washer, Buffer Pad
8.010.042
|
|||
| 6 |
Buffer Pad, Engine Mount Link
7.020.001
|
$1.05 $0.78 | ||
| 7 |
Spacer, Engine Mount Link
8.020.045
|
$1.60 $1.20 | ||
| 8 |
Collar, Engine Mount Link
8.010.041
|
$2.36 $1.77 | ||
| 9 |
Bracket, Air Cleaner Assy
8.020.043
|
|||
| 10 |
Link Comp, Engine Mount
6.000.026
|
$30.19 $22.64 | ||
| 11 |
Lock Nut (M12)
9.200.010
|
|||
| 12 |
Flat Washer 12
9.300.007
|
|||
| 13 |
Nut, M6
9.200.006
|
$1.05 $0.78 | ||
| 14 |
Bolt M10X50
9.100.012
|
|||
| 15 |
Lock Nut (M10)
9.200.009
|
|||
| 16 |
Bolt M12X60
9.100.014
|
|||
| 17 |
Bolt M10X195
9.100.024
|
|||
| 18 |
Bolt M5X15
9.100.021
|
|||
| 19 |
Flat Washer 4
9.300.002
|
|||
| 20 |
Bolt M4X10
9.100.020
|
