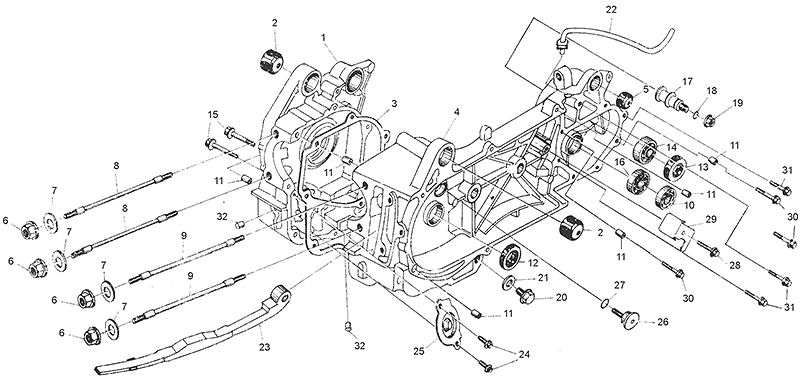

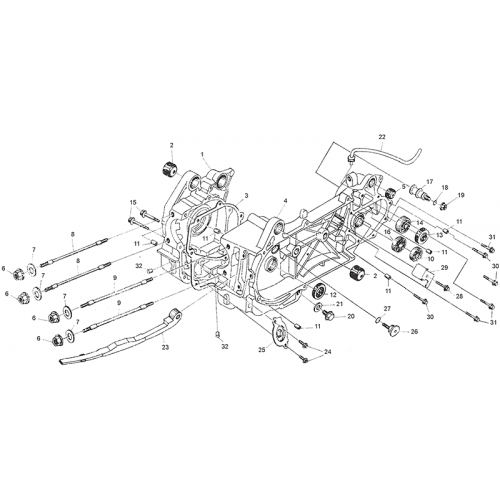

Crankcase Assembly (2) (Kasea Adventure Buggy 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CRANKCASEASSY.R
KS125T-1003210
|
$80.96 $60.72 | ||
| 2 |
BUSH ENGINE HANGER RUBBER
KS125T-1003320
|
$8.37 $6.28 | ||
| 3 |
GASKET CRANKCASE
KS125T-1003014
|
|||
| 4 |
CRANKCASEASSY.L
KS125T-1003310
|
|||
| 5 |
BUSH RR CUSHION UNDER RUBBER
KS125T-1003330
|
$4.18 $3.14 | ||
| 6 |
NUT FLANGE M8
KS125T-1003003
|
$1.12 $0.84 | ||
| 7 |
WASHER 8
KS125T-1003004
|
$0.70 $0.52 | ||
| 8 |
BOLT STUD M8X187.5
KS125T-1003001
|
$4.11 $3.09 | ||
| 9 |
BOLT STUD M8X195.5
KS125T-1003002
|
$4.18 $3.14 | ||
| 10 |
Bearing Radial Ball E6002
91004-E6002-KAT
|
|||
| 11 |
PIN DOWEL 8X14
KS125-1003005
|
|||
| 12 |
OIL SEAL 19.8X30X5
KS125T-1003110
|
$4.18 $3.14 | ||
| 13 |
OIL SEAL 27X42X7
KS125T-1003340
|
$4.18 $3.14 | ||
| 14 |
Bearing Radial Ball E6004-2Rs
91004-E6004-2RS
|
$11.92 $8.94 | ||
| 15 |
BOLT FLANGE M6X50
KS125-1003032
|
$1.88 $1.41 | ||
| 17 |
Bearing Radial Ball E6310
91004-E6301-KAT
|
|||
| 18 |
OIL SEAL 7.5X15
KS125T-1003016
|
$4.53 $3.40 | ||
| 19 |
NUT FLANGE M8
KS125T-1003600
|
$1.12 $0.84 | ||
| 20 |
BOLT DRAIN PLUG M12
KS125T-1003018
|
$4.18 $3.14 | ||
| 21 |
WASHER DRAIN PLUG M12
KS125T-1003019
|
$0.70 $0.52 |
