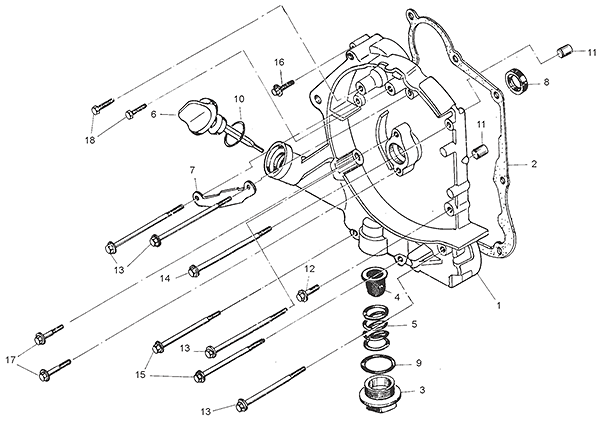

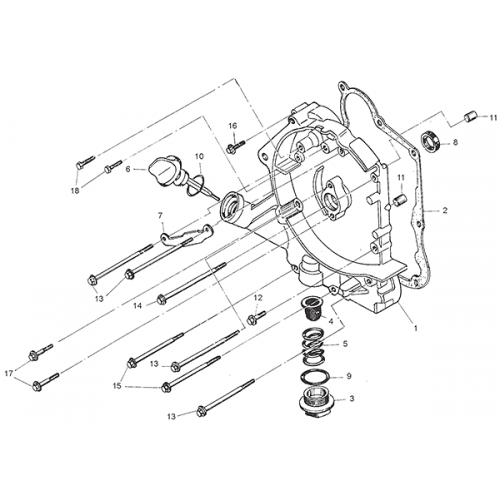

Crankcase Assembly (1) (Kasea Adventure Buggy 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
COVER R CRANKCASE COMP.
KS125T-1003101
|
$64.53 $48.40 | ||
| 2 |
CRANKCASE COVER, GASKET
KS125T-1003013
|
$8.37 $6.28 | ||
| 3 |
CAP TAPPET ADJUSTING HOLE
KS125T-1003104
|
$5.58 $4.18 | ||
| 4 |
SCREEN OIL FILTER
KS125T-1003120
|
$2.79 $2.09 | ||
| 5 |
SPRING OIL FILTER SCREEN
KS125T-1003102
|
$4.11 $3.09 | ||
| 6 |
GAUGE OIL LEVEL
KS125T-1003105
|
$4.18 $3.14 | ||
| 7 |
CLAMPER AC GENERATOR CORD
KS125T-1003006
|
$1.39 $1.05 | ||
| 8 |
OIL SEAL 19.8X30X5
KS125T-1003110
|
$4.18 $3.14 | ||
| 9 |
O-RING 30.8X3
KS125T-1003103
|
$1.95 $1.46 | ||
| 10 |
O-RING 18X3
KS125-1003307
|
|||
| 11 |
PIN DOWEL 8X14
KS125-1003005
|
|||
| 12 |
BOLT FLANGE M6X32
KS125-1003015
|
$1.95 $1.46 | ||
| 13 |
BOLT FLANGE M6X95
KS125-1003012
|
$2.79 $2.09 | ||
| 14 |
BOLT FLANGE M6X100
KS125T-1003007
|
$3.49 $2.61 | ||
| 15 |
BOLT FLANGE M6X110
KS125T-1003008
|
$3.77 $2.82 | ||
| 16 |
BOLT FLANGE M6X40
KS125-1003034
|
$1.74 $1.31 | ||
| 17 |
BOLT FLANGE M6X20
KS125T-1003106
|
$0.92 $0.69 | ||
| 18 |
Bolt Hex M5X12-Zn.D
92101-05012-OH
|
$1.05 $0.78 |
