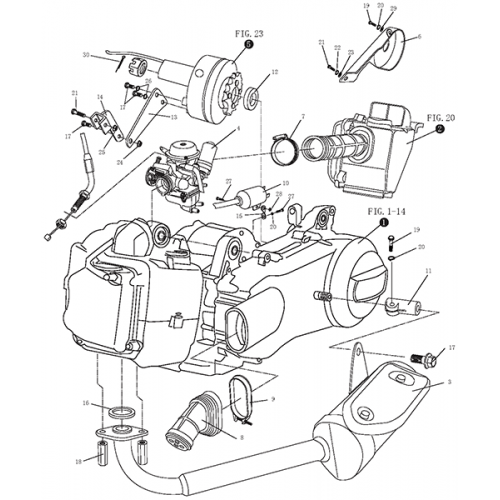

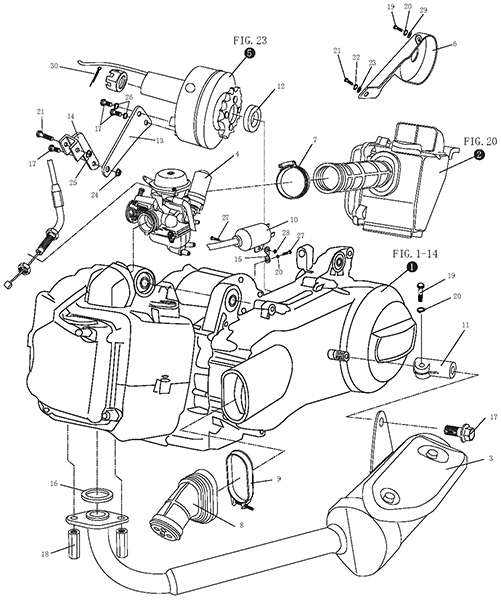

Air Cleaner | Muffler (Kasea Adventure Buggy 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Engine 150Cc
2.000.009
|
|||
| 2 |
Air Cleaner Assy.
6.000.017
|
|||
| 3 |
Kasea LM150IIR Exhaust Assembly
6.000.015
|
|||
| 4 |
Carburetor Assy.
16100-KAT-913-1
|
$80.00 $60.00 | ||
| 5 |
Kasea LM150IIR Reverse Assembly
56000-20225-OB
|
|||
| 6 |
Cover, Chain
7.010.012
|
|||
| 7 |
CLAMP
98250-50035-KAT
|
$3.49 $2.61 | ||
| 8 |
BOOT, SIDE CASE
64000-00035-KAT
|
$19.56 $14.67 | ||
| 9 |
Clamp
8.020.055
|
|||
| 10 |
COIL, IGNITION
00010-32000-KAS
|
$34.82 $26.11 | ||
| 11 |
Rack Support, Muffler
8.030.005
|
|||
| 12 |
Spacer, Reverse
8.010.050
|
|||
| 13 |
Bracket, Reverse
8.020.057
|
|||
| 14 |
Bracket Arm, Reverse
8.020.058
|
$2.09 $1.57 | ||
| 15 |
Bracket, Ignition Coil
8.020.031
|
|||
| 16 |
Gasket, Ex. Pipe
93219-19030-KAS
|
$2.79 $2.09 | ||
| 17 |
Bolt M10X20
9.100.015
|
|||
| 18 |
Nut Flange M6
KS125T-1001008
|
$1.12 $0.84 | ||
| 19 |
Bolt M6X20
9.100.005
|
|||
| 20 |
Lock Washer 6
9.400.004
|
