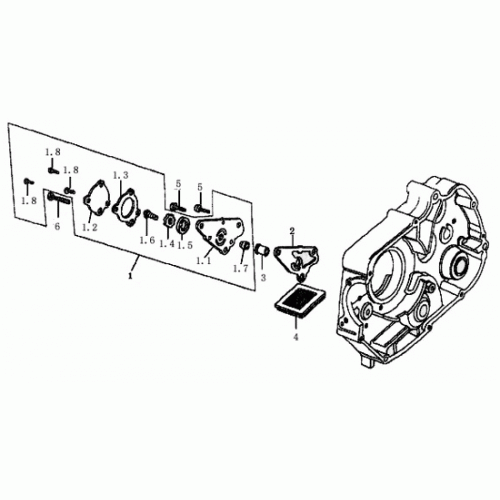

Oil Pump (Dazon Raider 90 2006 and Earlier)

Change Assembly

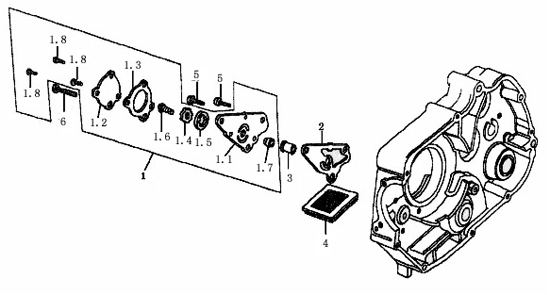

Oil Pump (Dazon Raider 90 2006 and Earlier)
# Product Code: Product Name Req'd Price:
1 15100-CDA1-0000 Pump Assy., Oil $15.00 $11.25
1.1 15311-CDA1-0000 Body, Pump Oil
1.2 15321-CDA1-0000 Cover,Oil Pump
1.3 15329-CDA1-0000 Gasket, Oil Pump Cover
1.4 15331-CDA1-0000 Oil Pump Rotor, Inner
1.5 15332-CDA1-0000 Oil Pump Rotor, Outer
1.6 15382-CDA1-0000 Shaft, Oil Pump
1.7 15383-CDA1-0000 Sleeve, Oil Pump Shaft
1.8 93600-05010-0A Screw $1.16 $0.87
2 15119-CDA1-0000 Gasket, Oil Pump
3 15384-CDA1-0000 Sleeve, Oil Pump Sprocket
4 15421-CDA1-0000 Screen, Oil Filter
5 93600-06014-0A Screw $0.29 $0.22
6 93600-06022-0A Screw $0.35 $0.26
Showing 1 to 14 of 14 (1 Pages)
