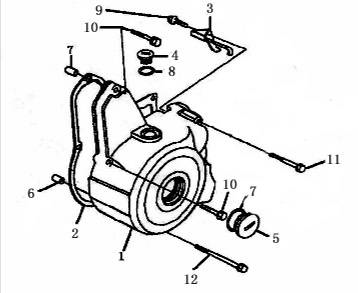

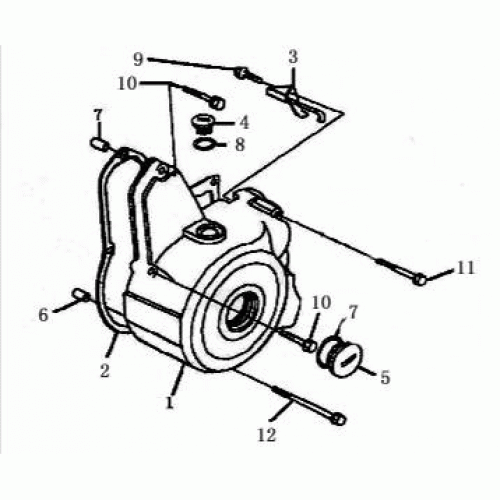

Left Crankcase Cover (Dazon Raider 90 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover, Left Crankcase
11341-CDA1-0000
|
$76.27 | ||
| 2 |
Gasket, Left Crankcase Cover
11395-CDA1-0000
|
|||
| 3 |
Clamper, A.C.Generator Cord
32961-CDA1-0000
|
$1.39 | ||
| 4 |
Cap, Timing
90036-CDA1-0000
|
$2.09 | ||
| 5 |
Cap, A.C.Generator
90037-CDA1-0000
|
$3.49 | ||
| 6 |
Pin, Dowel
94310-08120
|
$0.63 | ||
| 7 |
O-ring
91302-CDA1-0000
|
$0.56 | ||
| 8 |
O-ring
91306-CDA1-0000
|
$0.56 | ||
| 9 |
Bolt
96010-06016-0A
|
$0.70 | ||
| 10 |
Bolt
96010-08032-0A
|
$0.70 | ||
| 11 |
Bolt
96010-06050-0A
|
$1.05 | ||
| 12 |
Bolt
96010-06065-0A
|
$1.05 |
