Clutch (Dazon Raider 90 2006 and Earlier)

Change Assembly

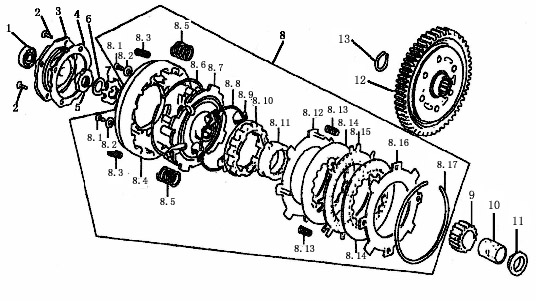

Clutch (Dazon Raider 90 2006 and Earlier)
# Product Code: Product Name Req'd Price:
1 96100-6000 Bearing $6.01 $4.50
3 15431-CDA1-0000 Cap, Clutch End $10.40 $7.80
4 15439-CDA1-0000 Gasekt, Outer Clutch Cover $2.31 $1.73
5 90241-CDA1-0000 Nut, Round $2.31 $1.73
6 90432-CDA1-0000 Washer, Lock $0.46 $0.35
7 90431-CDA1-0000 Washer,Wing $0.46 $0.35
8 22660-CDA1-0000 Clutch Assy.
8.1 93600-05010-0A Screw $1.16 $0.87
8.10 22665-CDA1-0000 Sleeve, Centering
8.11 22671-CDA1-0000 Centering Ring, Clutch
8.12 22667-CDA1-0000 Clutch Plate,Lower
8.13 22674-CDA1-0000 Separating Spring, Clutch
8.14 22668-CDA1-0000 Friction Disc A, Clutch
8.15 22669-CDA1-0000 Friction Disc B, Clutch
8.16 22666-CDA1-0000 Clutch Plate,Upper
8.17 94510-50000 Circlip
8.2 94110-05B01-0C Washer
8.3 22672-CDA1-0000 Damping Spring, Clutch
8.4 22661-CDA1-0000 Clutch Cover, Outer
8.5 22673-CDA1-0000 Spring, Clutch
Showing 1 to 20 of 29 (2 Pages)
