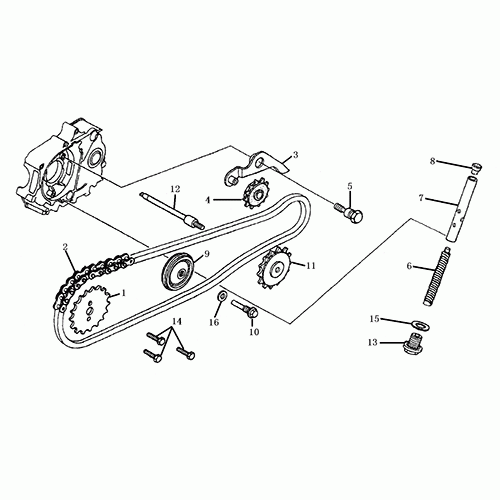

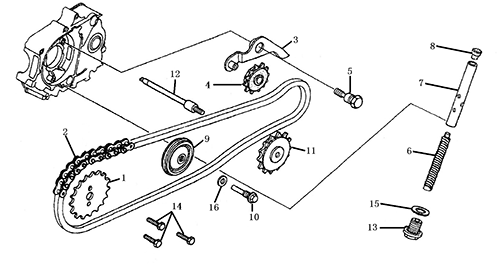

Cam Chain/Tensioner (Dazon Raider 90 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Sprocket, Cam
14321-CDA1-0000
|
$6.97 | ||
| 2 |
Chain, Cam
14401-CDA1-0000
|
$18.83 | ||
| 3 |
Arm, Cam Chain Tensioner
14500-CDA1-0000
|
|||
| 4 |
Roller, Cam Chain Tensioner
14502-CDA1-0000
|
|||
| 5 |
Pivot, Cam Chain Tensionoer
14531-CDA1-0000
|
$2.09 | ||
| 6 |
Spring, Cam Chain Tensionoer
14541-CDA1-0000
|
|||
| 7 |
Push Rod, Cam Chain Tensionoer
14551-CDA1-0000
|
|||
| 8 |
Head, Cam Chain Tensionoer Push Rod
14566-CDA1-0000
|
|||
| 9 |
Guide Roller Comp., Cam Chain
14610-CDA1-0000
|
$2.15 | ||
| 10 |
Pin, Cam Chain Guide Roller
14615-CDA1-0000
|
|||
| 11 |
Drive Sprocket, Oil Pump
14670-CDA1-0000
|
$6.97 | ||
| 12 |
Spindle, Oil Pump Drive Sprocket
14675-CDA1-0000
|
|||
| 13 |
Bolt, Sealing
90034-CDA1-0000
|
$1.81 | ||
| 14 |
Bolt
96010-05012-0A
|
$0.70 | ||
| 15 |
Washer
94110-14E01-AL
|
$0.35 | ||
| 16 |
Washer
94110-08E01-AL
|
$0.28 |
