Select Assembly

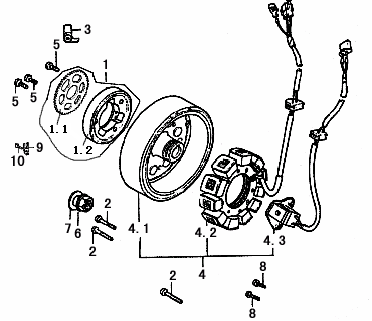

Generator (Dazon Raider 250 Engine 2006+)

Generator (Dazon Raider 250 Engine 2006+)
# Product Code: Product Name Req'd Price:
1 2812A-SCC0-0000 Clutch, Starter $77.18$102.91
1.1 28121-SCC0-0000 Gear ,Starter
1.2 28122-SCC0-0000 Clutch, Single-way
2 96010-06030-0D Bolt, Flange $0.78$1.04
3 32961-SCC0-0000 Clip, Generator Wire $1.08$1.44
4 31100-SCC0-0000 Generator $131.76$175.68
4.1 31110-SCC0-0000 Flywheel Comp. $46.00$61.33
4.2 31120-SCC0-0000 Stator Comp. $92.78$123.70
4.3 31130-SCC0-0000 Wire Comp., Pulse
5 96050-08018-0D Bolt, Socket-head $1.73$2.31
6 90200-16E01-0B Nut, Flange $2.17$2.89
7 94110-16E01-ST Washer, Copper $1.08$1.44
8 93210-05016-0D Bolt, Hex $0.78$1.04
9 28131-SCC0-0000 Guide, Starter Gear $1.73$2.31
10 96010-06012-0D Bolt, Flange $0.78$1.04
Showing 1 to 15 of 15 (1 Pages)
