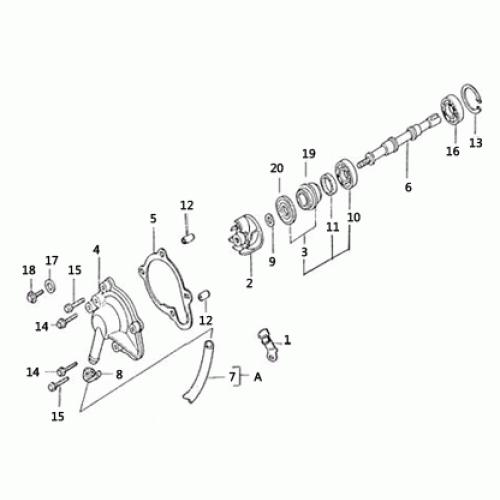

Water Pump (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Clamper, Breather Tube
12312-SBH0-0000
|
|||
| 2 |
Impeller, Water Pump
19215-SBH0-0000
|
|||
| 3 |
Water Seal ,Mechanical
19217-SBH0-0000
|
$30.12 | ||
| 4 |
Cover, Water Pump
19221-SBH0-0000
|
|||
| 5 |
Gasket, Water Pump Cover
19229-SBH0-0000
|
$2.79 | ||
| 6 |
Shaft, Water Pump
19231-SBH0-0000
|
$15.69 | ||
| 7 |
Hose, Water A
19501-SBH0-0000
|
$9.06 | ||
| 8 |
Clip, Tube 20
11263-SBH0-0000
|
|||
| 9 |
Washer, Cu 7.2*13*1.2
94110-07E01-ST
|
$0.97 | ||
| 10 |
Bearing, Ball Radial 6901
96100-69010
|
$16.74 | ||
| 11 |
Oil Seal 25*40*8
91203-SBH0-0000
|
|||
| 12 |
Pin, Dowel
94310-08140
|
$0.49 | ||
| 13 |
Circlip, Internal 26
94520-26000-OE
|
$0.60 | ||
| 14 |
Bolt, Flange M6*22
96010-06022
|
|||
| 15 |
Blot, Flange M6*12
96010-06032
|
|||
| 16 |
Radial Ball Bearing, 6000
96100-60000
|
$13.95 | ||
| 17 |
Washer, Copper
94110-06E01-CU
|
$0.84 | ||
| 18 |
Bolt, Flange M6*10
96010-06018
|
|||
| 19 |
Body, Water Seal
19218-SBH0-0000
|
|||
| 20 |
Washer, Plastic
19219-SBH0-0000
|
