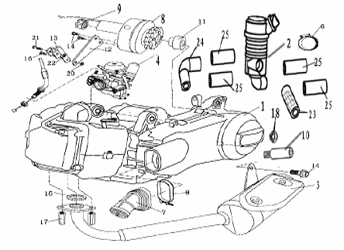

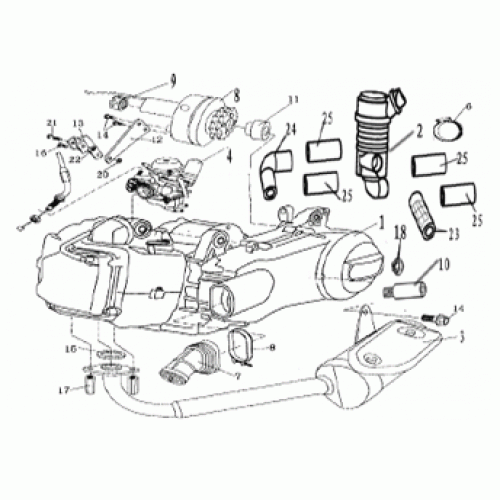

Air Cleaner/Muffler (Dazon Raider 150 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Element ,Air Cleaner
17211-BCA0-0000
|
$14.49 | ||
| 1 |
Engine Wuyang-style
0005Z-SCA0-0000
|
|||
| 2 |
Air Cleaner Assy.
17201-SCA4-0000
|
|||
| 3 |
Muffler Assy.
1830A-SCA4-0000
|
|||
| 4.1 |
150cc Auto Choke Carburetor Assy
1610A-SCA0-0000
|
|||
| 4.2 |
150cc Cable Choke Carburetor Assy.
1610A-SCA4-0000
|
|||
| 5 |
Reverser Assy. Lengthened-spline Type
2480A-BCA0-0001
|
|||
| 6 |
Circlip,Air Cleaner
17208-SCA4-0000
|
|||
| 7 |
Boot, Side Case
1134A-TAA0-0000
|
|||
| 8 |
Clamp,Side Case Boot
90652-TAA0-0000
|
|||
| 9 |
Lock Nut,Flange M16x1.5
90210-16B01-1B
|
$2.51 | ||
| 10 |
Connecting Bush, Muffler
18400-SCA4-0000
|
$20.08 | ||
| 11 |
Collar, Reverser
23808-BCA0-0010-0C
|
|||
| 12 |
Mounting Plate, Reverser
2489A-BCA0-0000
|
|||
| 13 |
Bracket,Reverser Mounting Plate
24892-BCA0-0000
|
|||
| 15 |
Washer, Muffler
18291-TBA0-0000
|
$2.79 | ||
| 16 |
Bolt, Flange M10x1.25x30
90140-10030-1B
|
|||
| 17 |
Bolt, Muffler
90301-TCB0-0000-0C
|
|||
| 18 |
Lock Nut,Flange M12
90230-12E01-0B
|
$0.84 | ||
| 19 |
Lock Nut,Flange
90210-06B01-0C
|
$0.70 |
