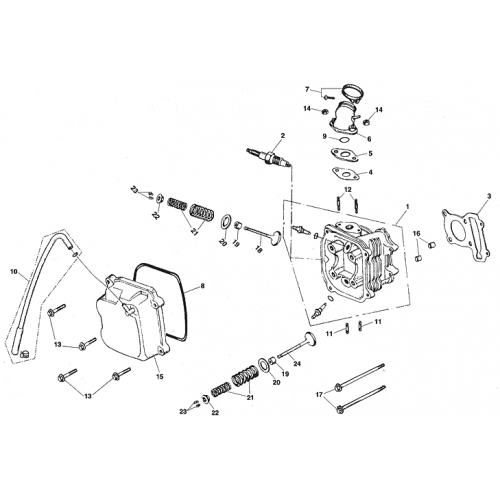

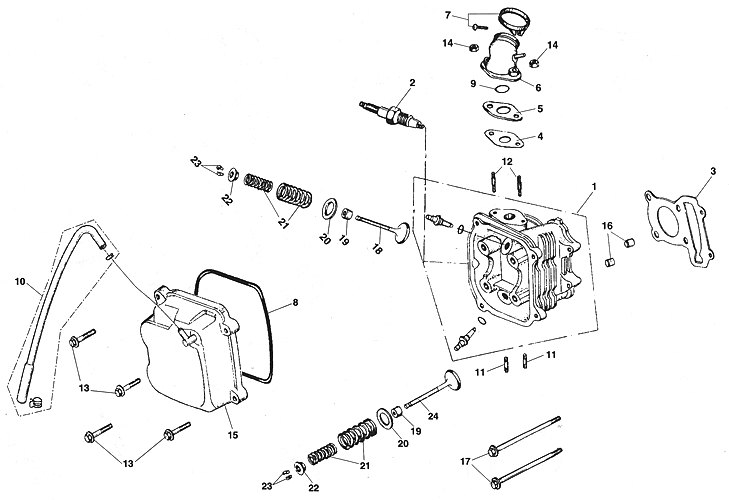

Cylinder Head Assy (Kasea LM150IIR 2000)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Head Cylinder Subassy
M150-100-1320
|
$76.27 | ||
| 2 |
Plug Spark (NGK Copy)
98056-57713-00
|
$4.18 | ||
| 3 |
Gasket Cylinder Head
M150-1001010
|
$11.92 | ||
| 4 |
Gasket Carburetor Insulator
M150-1001004
|
$2.79 | ||
| 5 |
Insulator Carburetor
M150-1001005
|
$2.79 | ||
| 6 |
Pipe Comp. In
M150-1001210
|
$30.75 | ||
| 7 |
Band Insulator
M150-1001220
|
$2.79 | ||
| 8 |
Gasket Head Cover
M150-1001103
|
$4.18 | ||
| 9 |
O-Ring 27X2
M150-1001201
|
$1.39 | ||
| 10 |
Tube Breather
M150-1001001
|
|||
| 11 |
Bolt Stud M6X18
M150-1001011
|
$2.79 | ||
| 12 |
Bolt Stud M6X50
M150-1001006
|
$4.18 | ||
| 13 |
Bolt M6X25
M150-B-1003075
|
$1.74 | ||
| 14 |
Nut Flange M6-Zn. D
95500-06001-KAS
|
$0.70 | ||
| 15 |
Cover Comp. Cylinder Head
M150-1001100
|
$27.61 | ||
| 16 |
Pin Dowel 10X16
M150-1001007
|
$1.39 | ||
| 17 |
Bolt Flange M6X100
M150-1003007
|
$3.49 | ||
| 18 |
Valve, In
M150-1001301
|
$15.69 | ||
| 19 |
Seal Valve Stem
M150-1001310
|
$2.79 | ||
| 20 |
Seat Valve Spring Outer
M150-1001302
|
$0.70 |
