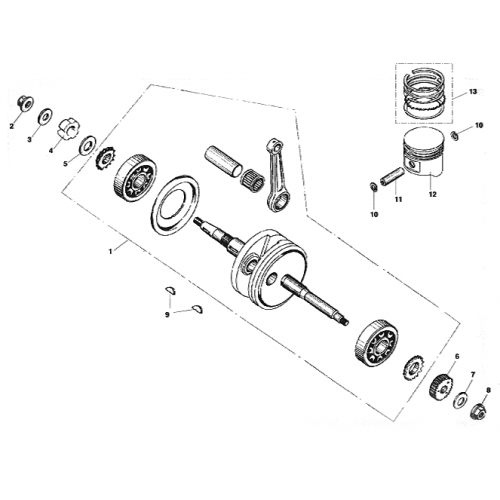

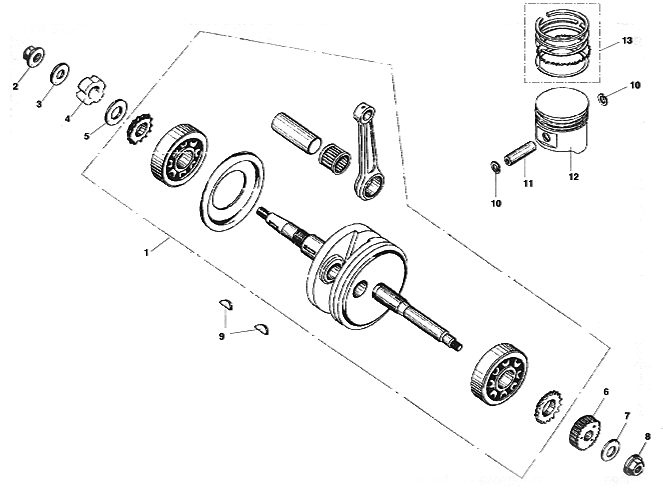

Crankshaft Conrod, Piston (Kasea LM150IIR 2000)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankshaft And Conrod Assy.
M150-1004100
|
$92.69 | ||
| 2 |
Nut M12X1.25
M150-1004007
|
$1.67 | ||
| 3 |
Washer 12-149Hv 12-140Hv
M150-1004011
|
$0.70 | ||
| 4 |
Nut Lock
M150-1004009
|
|||
| 5 |
Washer
M150-1004013
|
|||
| 6 |
Gear Kick Drive
M150-1004012
|
$11.92 | ||
| 7 |
Washer D12
M150-1040005
|
|||
| 8 |
Nut M12
M150-1004008
|
$1.67 | ||
| 10 |
Clip Piston Pin
M150-1004003
|
$0.49 | ||
| 11 |
Pin Piston
M150-1004006
|
$4.18 | ||
| 12 |
Piston
M150-1004001
|
$31.38 | ||
| 13 |
Piston Ring Set
M150-1004002
|
$23.85 |
