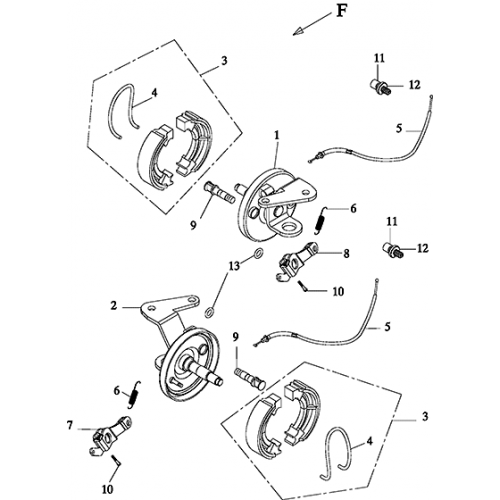

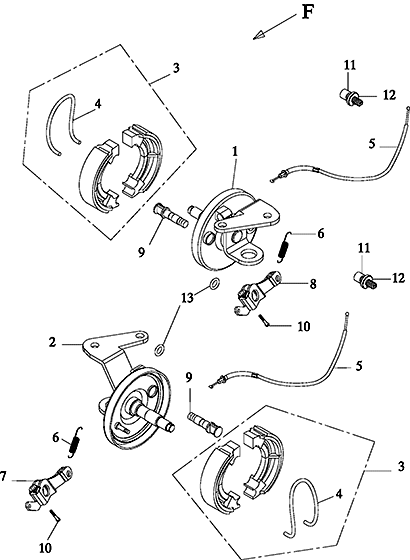

Front Brake (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Right Knuckle Ass'Y
44520-168-000
|
|||
| 2 |
Left Knuckle Ass'Y(Rev.1)
44510-168-000
|
$85.01 | ||
| 3 |
Front Brake Shoe Comp
45120-145-001
|
$30.25 | ||
| 3 |
Front Brake Shoe Comp
45120-145-000
|
|||
| 4 |
Strain Spring
45133-145-000
|
|||
| 5 |
Front Brake Cable
45450-168-00A
|
$23.72 | ||
| 6 |
Reset Spring
45437-145-000
|
|||
| 7 |
Front Right Brake Arm
45310-145-000
|
$11.86 | ||
| 8 |
Front Left Brake Arm
45410-145-000
|
$11.86 | ||
| 9 |
Front Brake Cam Shaft(Rev.3)
45141-145-000
|
$10.98 | ||
| 10 |
Hex Washer Face Bolt, 5*24
96000-05024-08
|
$2.68 | ||
| 11 |
Lock Bolt
53191-168-000
|
$4.76 | ||
| 12 |
Lock Nut
53192-168-000
|
$2.50 | ||
| 13 |
Oil Ring, 12.5*3
91313-104-000
|
