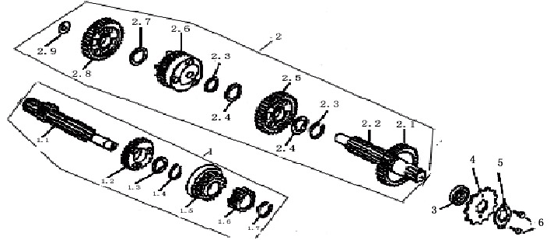

Transmission (Dazon Raider 90 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mainshaft Assy.,Transmission
23210-CDA1-0000
|
$68.05 | ||
| 1.1 |
Mainshaft, Transmission
23211-CDA1-0000
|
$20.08 | ||
| 1.2 |
2nd Gear, Mainshaft
23431-CDA1-0000
|
$36.02 | ||
| 1.3 |
Washer, Spline
90463-CDA1-0000
|
$0.56 | ||
| 1.4 |
Circlip
94510-17000
|
$0.49 | ||
| 1.5 |
3rd Gear, Mainshaft
23451-CDA1-0000
|
$16.32 | ||
| 1.6 |
Reverse Gear, Mainshaft
23471-CDA1-0000
|
$19.30 | ||
| 1.7 |
Clip, 12mm
94510-12000
|
$0.35 | ||
| 2 |
Countershaft Assy.,Transmission
23220-CDA1-0000
|
$84.48 | ||
| 2.1 |
Reverse Gear, Countershaft
23481-CDA1-0000
|
$19.71 | ||
| 2.2 |
Countershaft,Transmission
23221-CDA1-0000
|
$20.08 | ||
| 2.3 |
CIRCLIP EXTERNAL 20
94510-20000
|
$0.63 | ||
| 2.4 |
Washer, Spline
90462-CDA1-0000
|
$0.70 | ||
| 2.5 |
3rd Gear, Countershaft
23461-CDA1-0000
|
$16.32 | ||
| 2.6 |
2nd Gear, Countershaft
23441-CDA1-0000
|
$16.32 | ||
| 2.7 |
Washer, Thrust
90443-CDA1-0000
|
$0.49 | ||
| 2.8 |
1st Gear, Countershaft
23421-CDA1-0000
|
$16.32 | ||
| 2.9 |
Washer, Thrust
90441-CDA1-0000
|
$0.35 | ||
| 3 |
Seal, Oil
91204-CDA1-0000
|
$2.44 | ||
| 4 |
Sprocket, Drive
23801-CDA1-0000
|
$11.30 |
