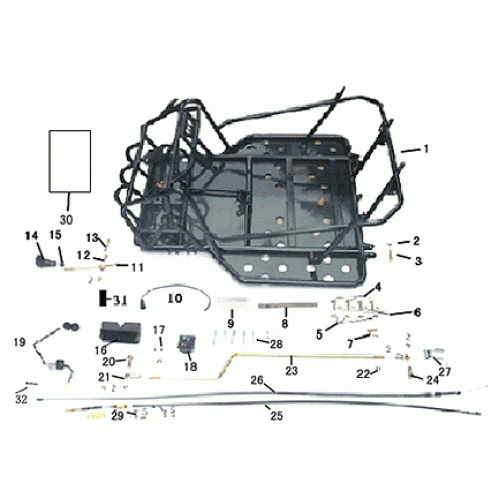

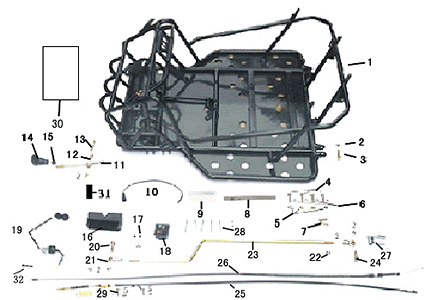

Frame Comp (Dazon Raider 90 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp.
50100-BDD0-0020
|
|||
| 2 |
Lock Nut, Flange
90210-10B01-1B
|
|||
| 3 |
Bolt, Flange
90140-10055-1B
|
$1.81 | ||
| 4 |
Bolt, Flange
95710-08040-0B
|
$0.84 | ||
| 5 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 6 |
R-washer
50199-BCA0-0000-0C
|
|||
| 7 |
Bolt, Socket-head
96050-06016-0D
|
$0.56 | ||
| 8 |
Plate,Frame Serial Number
87507-ADA0-0000
|
|||
| 9-2 |
Nameplate,Aluminium
87507-BDD1-0000
|
$2.51 | ||
| 9-1 |
Nameplate,Aluminium
87507-BCA0-0000
|
$2.51 | ||
| 10 |
Lamp,Neutral Indicator
37205-ADA0-0000
|
|||
| 11 |
Gear Shifter
53170-BDD0-0001
|
$26.36 | ||
| 12 |
Mounting Bush, Center
53175-BDA0-0000
|
$8.44 | ||
| 13 |
Bolt, Flange
90140-10050-0B
|
$1.53 | ||
| 14 |
Cover, Reverse Handle
53191-BDA0-0000
|
$20.08 | ||
| 15 |
Nut, Hex
94010-14B01-0D
|
$1.67 | ||
| 16 |
Cover, Key Set Ignition Switch
50332-BCA0-0000
|
|||
| 17 |
Screw, Tappping ST4.2x16
93930-42160-0C
|
$1.15 | ||
| 18 |
Unit Switch
35220-BDD0-0000
|
$17.57 | ||
| 19 |
Key Set-ignition Switch Comp.
35100-BCA0-0020
|
