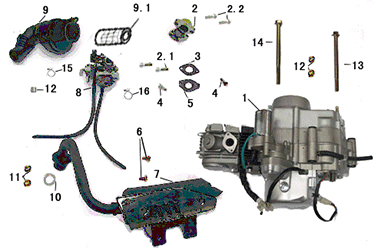

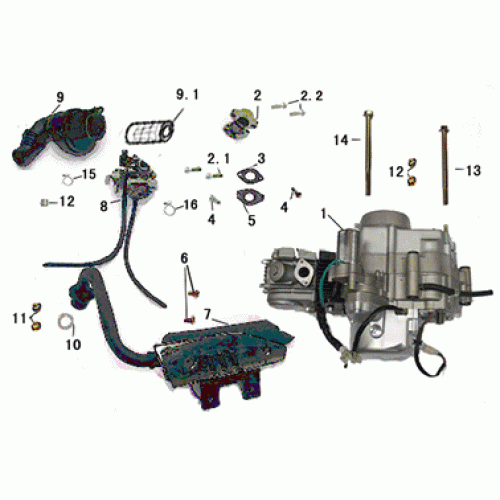

Engine Assy (Dazon Raider 90 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Engine Assy.
0005Z-CDA2-0000
|
|||
| 2 |
Tube,Air Inlet
17111-BDD0-0000
|
|||
| 2.1 |
Bolt M6x20
93210-06020-0G
|
$0.56 | ||
| 2.2 |
Bolt M6x30
93210-06030-0G
|
$0.56 | ||
| 3 |
Gasket, Air Inlet Tube
17119-CAA0-0000-M2
|
|||
| 4 |
Nut,Muffler Assy.
90301-TBA0-0000-0D
|
|||
| 5 |
Gasket , Heat Insulating
16210-CAA0-0000
|
$1.39 | ||
| 6 |
Bolt, Socket-head
95710-08016-0B
|
$0.63 | ||
| 7 |
Muffler Assy.
1830A-BDD0-0001
|
$95.94 | ||
| 8 |
90cc Carburetor Assy. #15
1610A-CAA0-0000
|
|||
| 9 |
Air Cleaner Assy.
1720A-BDD0-0000
|
|||
| 9.1 |
Element,Air Cleaner
17211-BDD0-0000
|
|||
| 10 |
Sealing Washer, Muffler Assy.
18291-WCA0-0000
|
$2.37 | ||
| 11 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 12 |
Limit Bush, Carburetor
16190-CDA0-0000
|
|||
| 13 |
Bolt, Flange M8*105
95710-08105-0B
|
$2.09 | ||
| 14 |
Bolt, Flange M8*115
95710-08115-0B
|
$2.09 | ||
| 15 |
Clamp 7MM
16107-CAA0-0000
|
$0.70 | ||
| 16 |
Clamp 9MM
16109-CAA0-0000
|
$0.70 |
