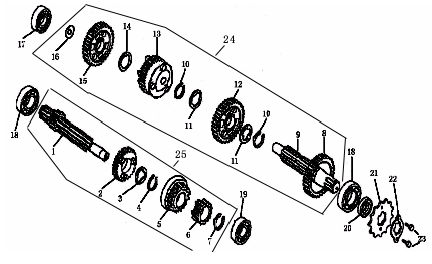

Transmission (Dazon Raider 90 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mainshaft, Transmission
23211-CDA1-0000
|
$20.08 | ||
| 2 |
2nd Gear, Mainshaft
23431-CDA1-0000
|
$36.02 | ||
| 3 |
Washer, Spline
90463-CDA1-0000
|
$0.56 | ||
| 4 |
Circlip
94510-17000
|
$0.49 | ||
| 5 |
3rd Gear, Mainshaft
23451-CDA1-0000
|
$16.32 | ||
| 6 |
Reverse Gear, Mainshaft
23471-CDA1-0000
|
$19.30 | ||
| 7 |
Clip, 12mm
94510-12000
|
$0.35 | ||
| 8 |
Reverse Gear, Countershaft
23481-CDA1-0000
|
$19.71 | ||
| 9 |
Countershaft,Transmission
23221-CDA1-0000
|
$20.08 | ||
| 10 |
CIRCLIP EXTERNAL 20
94510-20000
|
$0.63 | ||
| 11 |
Washer, Spline
90462-CDA1-0000
|
$0.70 | ||
| 12 |
3rd Gear, Countershaft
23461-CDA1-0000
|
$16.32 | ||
| 13 |
2nd Gear, Countershaft
23441-CDA1-0000
|
$16.32 | ||
| 14 |
Washer, Thrust
90443-CDA1-0000
|
$0.49 | ||
| 15 |
1st Gear, Countershaft
23421-CDA1-0000
|
$16.32 | ||
| 16 |
Washer, Thrust
90441-CDA1-0000
|
$0.35 | ||
| 17 |
Radial Ball Bearing, 6201C3
96100-62010
|
|||
| 18 |
Radial Ball Bearing, 6203
96100-62030
|
$10.46 | ||
| 19 |
Bearing
96100-60010
|
$7.25 | ||
| 20 |
Seal, Oil
91204-CDA1-0000
|
$2.44 |
