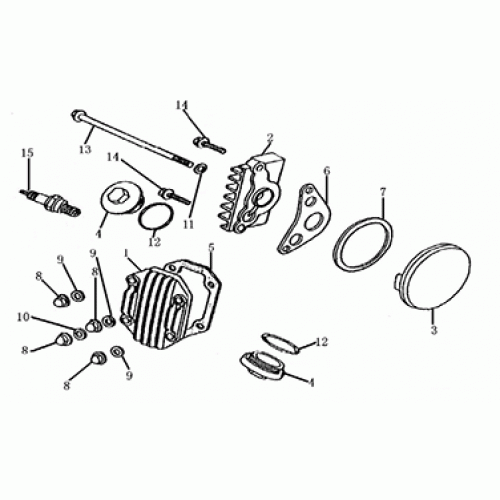

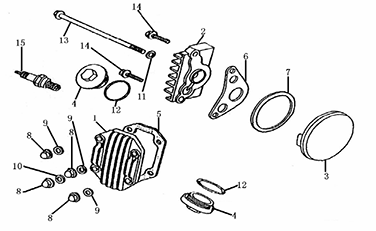

Cylinder Head Cover (Dazon Raider 90 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover, Cylinder Head
12301-CDA1-0000
|
$6.28 | ||
| 2 |
Cylinder Head Cover,Right
12331-CDA1-0000
|
$7.67 | ||
| 3 |
Cylinder Head Cover,Left
12341-CDA1-0000
|
|||
| 4 |
Cap, Valve Stem
12361-CDA1-0000
|
|||
| 5 |
Gasket, Cyliner Head Cover
12391-CDA1-0000
|
|||
| 6 |
Gasket,Right Cyliner Head Cover
12394-CDA1-0000
|
|||
| 7 |
Gasket,Left Cyliner Head Cover
12395-CDA1-0000
|
|||
| 8 |
Nut, Cap-shape
90320-06E01-0A
|
$1.74 | ||
| 9 |
Washer
94110-06E01-ST
|
$0.56 | ||
| 10 |
Washer, Copper
94110-06E01-CU
|
$0.84 | ||
| 11 |
Washer
94110-07E01-AL
|
|||
| 12 |
O-ring
91301-CDA1-0000
|
|||
| 13 |
Bolt, Long
95710-06110-0A
|
|||
| 14 |
Screw
96010-06020-0A
|
$0.28 | ||
| 15 |
Plug, Spark
98056-CDA1-0000
|
$4.83 |
