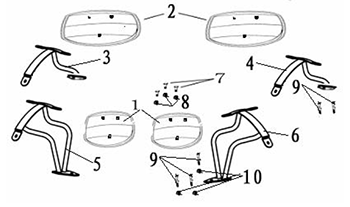

Mudguard (Dazon Raider 250S 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mudguard ,Front
50195-BDB0-0000
|
|||
| 2 |
Mudguard ,Rear
50197-BDB0-0000
|
|||
| 3 |
Left Bracket, Rear Mudguard
50260-BDE0-0000
|
|||
| 4 |
Right Bracket, Rear Mudguard
50270-BDE0-0000
|
|||
| 5 |
Left Bracket, Front Mudguard
50240-BDE0-0000
|
|||
| 6 |
Right Bracket, Front Mudguard
50250-BDE0-0000
|
|||
| 7 |
Bolt, Flange
95710-06016-0C
|
$0.70 | ||
| 8 |
Lock Nut,Flange
90210-06B01-0C
|
$0.70 | ||
| 9 |
Bolt, Flange
95710-08020-1B
|
|||
| 10 |
Lock Nut,Flange
90210-08B01-2B
|
