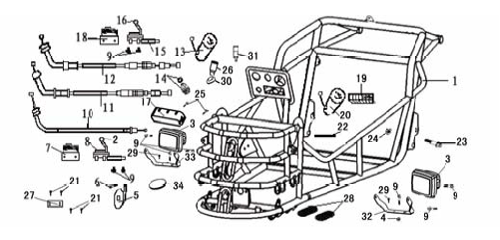

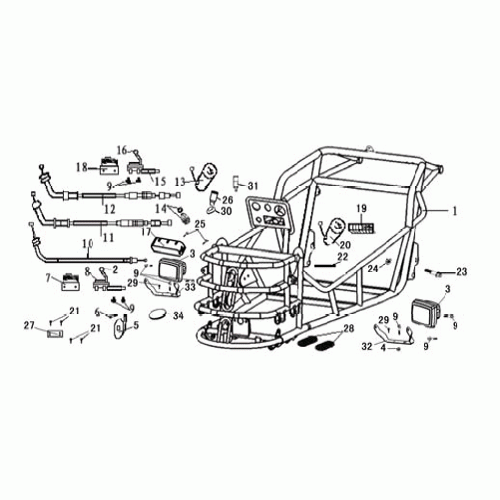

Frame Composition (Dazon Raider 250S 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp.
50100-BDC0-0010
|
|||
| 2 |
Cover, Reverse Handle
53171-BCA0-0000
|
|||
| 3 |
Headlamp
33120-BDA0-E000
|
|||
| 4 |
Lock Nut,Flange
90210-08B01-2B
|
|||
| 5 |
Horn
38110-BCA0-E000
|
$27.61 | ||
| 6 |
Bolt, Flange
95710-08012-1B
|
$1.05 | ||
| 7 |
Protective Cover, Reverse
53172-BCA0-0000
|
|||
| 8 |
Handle Assy., Brake
53180-BCC0-0000
|
$46.81 | ||
| 9 |
Bolt, Flange
95710-08016-1B
|
$1.05 | ||
| 10 |
Cable Comp., Parking Brake
43450-BCC0-0001
|
|||
| 11 |
Cable Comp., Reverse
24850-BCC0-0001
|
|||
| 12 |
Cable Comp., Throttle
17910-BDC0-0000
|
|||
| 13 |
Guage, Water Temperature
37200-BCC1-0000
|
|||
| 14 |
Key Set-ignition Switch Comp.
35100-BCA0-0010
|
$34.82 | ||
| 15 |
Handle Assy., Reverse
53170-BDC0-0000
|
|||
| 16 |
Cover, Reverse Handle
53191-BDA0-0000
|
$20.08 | ||
| 17 |
cover.switch
50332-BCA0-E002
|
|||
| 18 |
Protective Cover, Reverse
53172-BCC0-0000
|
|||
| 19 |
Switch ,Unit
3510A-BDC0-0000
|
|||
| 20 |
Tachometer
37500-BDC0-0000
|
