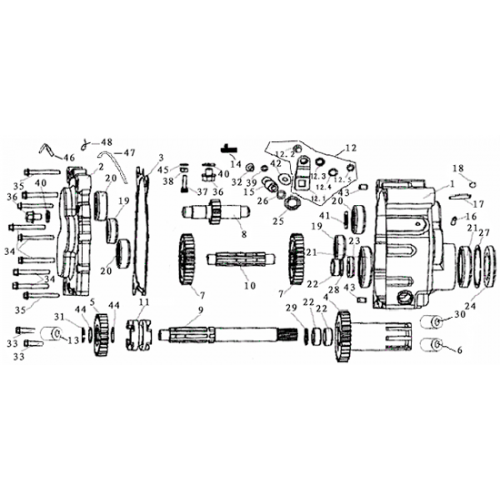

Transmission (Dazon Raider 250D 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Case, Gear
25100-BCC0-0001
|
|||
| 2 |
Cover, Gear Case
25200-BCC0-0001
|
|||
| 3 |
Gasket
25191-BCC0-E001
|
|||
| 4 |
Gear, Output
25301-BCC1-0000
|
$84.66 $63.49 | ||
| 5 |
Gear, Output
25307-BDA0-0002
|
|||
| 6 |
Bush I
25512-BCC0-0000
|
$11.30 $8.47 | ||
| 7 |
Gear, Input
25304-BCC0-0010
|
$57.49 $43.12 | ||
| 8 |
Shaft, Center
25305-BCC0-0010
|
|||
| 9 |
Dazon Go Kart Input Shaft
25401-BCC0-0020
|
|||
| 10 |
Shaft I
25402-BCC0-0010
|
$64.53 $48.40 | ||
| 11 |
Sleeve, Spline
25403-BCC0-0010
|
$46.82 $35.12 | ||
| 12 |
Fork,Assy
2550A-BCC0-0010
|
$31.38 $23.53 | ||
| 12.1 |
York, Gear Shifting
25501-BCC0-0000
|
|||
| 12.2 |
Pin ,Gear Shifting
25502-BCC0-0000
|
|||
| 12.3 |
Sleeve, Gear Shifting Pin
25503-BCC0-0000
|
|||
| 12.4 |
Circlip
94510-08000-0E
|
$0.70 $0.52 | ||
| 12.5 |
Washer, Flat
90404-BCC0-0000-0E
|
|||
| 13 |
Bush II
25513-BCC0-0000
|
$11.30 $8.47 | ||
| 14 |
Stop Washer, Double-ear
90441-06B01-0E
|
$0.70 $0.52 | ||
| 15 |
Shaft, Gear Shifting York
25504-BCC0-0000
|
$31.38 $23.53 |
