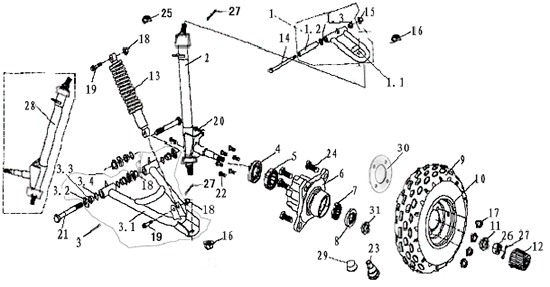

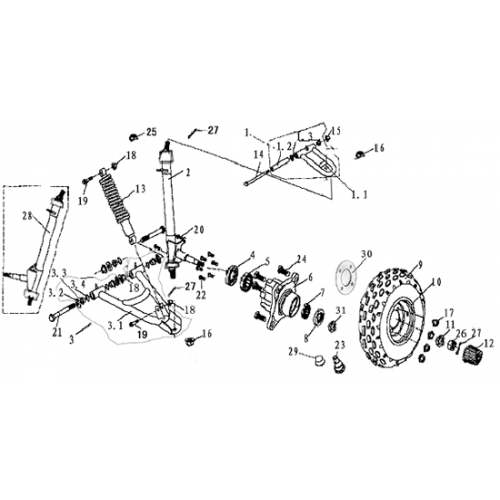

Front Wheel Assembly (Dazon Raider 250D 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Suspension Arm Assy., Upper
5110A-BCA0-0020
|
|||
| 1.1 |
Suspension Arm Subassy., Upper
51100-BCA0-0020
|
|||
| 1.2 |
Spacer, Center
51109-BCA0-0000
|
|||
| 1.3 |
Bush, Lower Suspension Arm
51108-BCA0-0000
|
|||
| 2 |
Knuckle Support, Front Left
51500-BCA0-0031
|
|||
| 3.1 |
Suspension Arm Subassy., Lower
5120A-BCB0-0010
|
|||
| 3.2 |
Cap, Dust
51209-BCA0-0000
|
|||
| 3.3 |
Bush, Lower Suspension Arm
51208-BCA0-0000
|
|||
| 3.4 |
Rubber, Fuel Tank
51207-BCA0-0000
|
|||
| 4 |
Seal,Oil
91201-BCA0-0001
|
$4.18 | ||
| 5 |
Bearing
96100-60050-2RS
|
$18.83 | ||
| 6 |
Hub, Front Wheel
4460A-BDE0-0001
|
$69.23 | ||
| 7 |
Bearing
96100-60040-2RS
|
$12.55 | ||
| 8 |
Seal, Oil
91202-BCA0-0000
|
$2.65 | ||
| 9 |
Front Tire 21x7-10
44710-BDA0-0000
|
$80.96 | ||
| 10-2 |
Aluminum Rim, Front
44705-BCA3-0000
|
$113.46 | ||
| 10-1 |
Vacuum Tire, Front
44705-BDA1-0000-B2
|
$64.53 | ||
| 11 |
Spacer, Front Wheel Hub
44301-BCA0-0000-0C
|
|||
| 12 |
Cap, Rear Wheel Axle
44691-BCA0-0001
|
|||
| 13-2 |
Shock Absorber Assy., Front
51400-BFD0-0000-B5
|
$104.43 |
