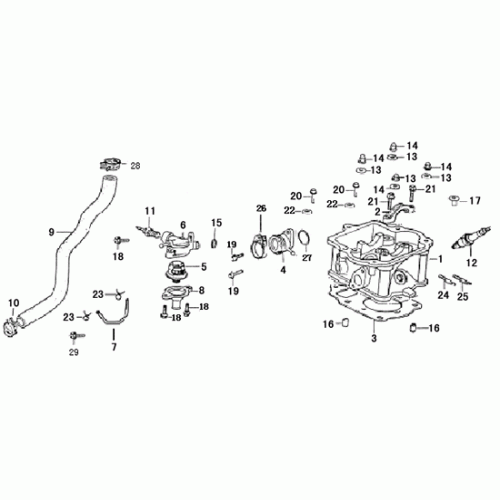

Cylinder Head (Dazon Raider 250 Engine 2006+)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Head Comp., Cylinder
12200-SCC0-0000
|
$170.76 | ||
| 2 |
Holder, Camshaft
14400-SCC0-0000
|
|||
| 3 |
Gasket,Cylinder Head
12251-SCC0-0010
|
$34.82 | ||
| 4 |
Manifold, Air-intake
17111-SCC0-0000
|
$34.82 | ||
| 5 |
Thermostat Case,Outer
19303-SDA0-0000
|
|||
| 6 |
Thermostat Case,Upper
19310-SCC0-0000
|
|||
| 7 |
Rubber Pipe ,Cooling
19505-BDE0-0000
|
$3.49 | ||
| 8 |
Thermostat Case,Lower
19315-SCC0-0000
|
|||
| 9 |
Rubber Pipe, Water Return
19503-BDE0-0000
|
$46.82 | ||
| 10 |
Clamp
11263-SCC0-1000
|
$5.58 | ||
| 11 |
Temperature Sensor
37750-SBH0-0000
|
|||
| 12 |
Spark Plug
98056-SCC0-1000
|
|||
| 13 |
Washer, Copper
94110-08E02-CU
|
$1.26 | ||
| 14 |
Nut, Flange
94050-08E01-0B
|
$0.70 | ||
| 15 |
O-Ring
91303-SBH0-0000
|
|||
| 16 |
Pin, Dowel
94310-10160
|
|||
| 17 |
Plug, Water
90151-SBH0-0000-0A
|
$2.09 | ||
| 18 |
Bolt, Flange
96010-06016-0D
|
|||
| 19 |
Bolt, Socket-head
96050-06016-0D
|
$0.56 | ||
| 20 |
Bolt, Flange
96010-06025-0D
|
