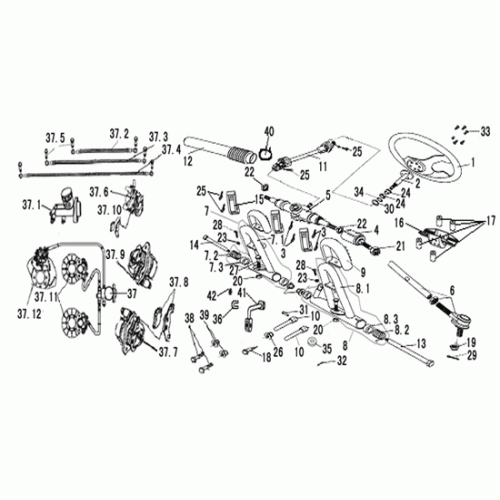

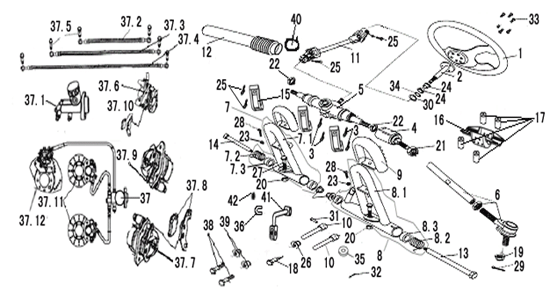

Steering Shaft Ass'y (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Steering Comp.
53100-BDA0-0000
|
|||
| 2 |
Shaft, Steering
53200-BDE0-0000
|
|||
| 3 |
Bolt, Socket
96050-08035-1B
|
|||
| 4 |
Ball Joint, Steering
53220-BDE0-0000
|
$35.15 | ||
| 5 |
Gearbox, Steering
53210-BDE0-0010
|
|||
| 6 |
Tie Rod, Right
5324A-BDE0-0011
|
|||
| 7 |
Pedal Comp., Throttle
5331A-BDE0-0000
|
|||
| 7.1 |
Pedal Comp., Throttle
53310-BDE0-0000
|
|||
| 11 |
Shaft , Steering Knuckle
53260-BDE0-0000
|
|||
| 15 |
Pressure Plate, Upper, Steering Gear
50103-BDA0-0000
|
$16.32 | ||
| 16 |
Shroud, Steering
53211-BDE0-0000
|
|||
| 17 |
Bush, Steering Shroud
94011-BDE0-0000-0C
|
|||
| 21 |
Nut, Hex
94010-12B01-0C
|
|||
| 25 |
Bolt, Socket
96050-08025-1B
|
|||
| 33 |
Screw, Socket-head M6*12
96050-06012-0D
|
$1.18 | ||
| 35 |
Washer, Flat
94110-06B01-0C
|
|||
| 36 |
Antiwear Cover, Throttle Pedal
53311-BDE0-0000
|
|||
| 37 |
Cylinder Comp., Brake
4520A-BDE0-0000
|
|||
| 39 |
Lock Nut,Flange
90210-08B01-2B
|
|||
| 40 |
Clamp
11263-SCC0-2000
|
$5.58 |
