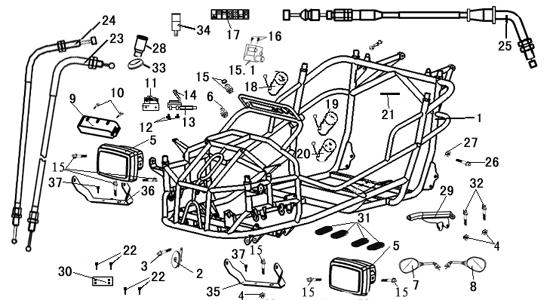

Frame Composition (Dazon Raider 250 2005 and Older)

Change Assembly

Frame Composition (Dazon Raider 250 2005 and Older)
# Product Name Req'd Price:
1 Frame Comp.
50100-BDE0-E000
4 Lock Nut,Flange
90210-08B01-2B
5 Headlamp
33120-BDA0-E010
6 Flasher
38300-BCA0-E000
7 Rearview Mirror, Left
88120-BCA0-E000
$18.83
8 Rearview Mirror, Right
88110-BCA0-E000
$18.83
12 Handle Assy., Reverse
53170-BDE0-0000
15 250cc Switch Comp. ,Key Set-ignition
35100-BCA0-0020-M2
$34.82
15.1 Lock, Anti-theft
35101-BCA0-E000
16 Screw, Countersunk
93500-05012-0C
17 Switch ,Unit
3510A-BDC0-0000
19 Indicator, Turning
37400-BCA0-E000
$34.82
20 Guage, Water Temperature
37200-BCC1-0000
23 Cable Comp., Parking Brake
43450-BDE0-0010
24 Cable Comp., Reverse
24850-BDE0-0000
25 Cable Comp., Throttle
17910-BDE0-0000
29 Handle Assy., Brake
53180-BDA0-0010
30 Nameplate
87507-BCA0-E000
35 Headlamp Bracket, Left Front
61312-BDA0-E000
36 Headlamp Bracket, Right Front
61313-BDA0-E000
Showing 1 to 20 of 21 (2 Pages)
