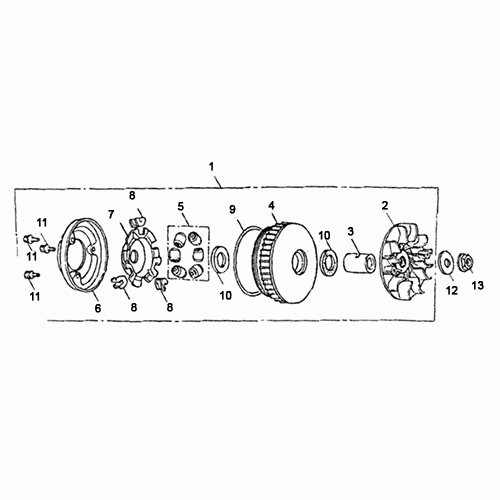

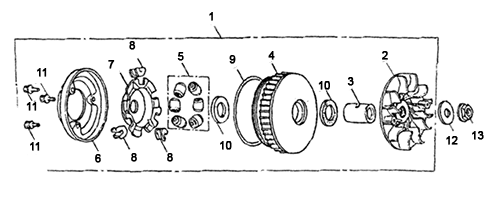

Drive Pulley (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Dazon 175 Drive Pulley Assy.
2201A-SBH0-0000
|
|||
| 2 |
Fan, CVT Cooling
22021-SBH0-0000
|
|||
| 3 |
Boss, Drive Plate
22031-SBH0-0000
|
|||
| 4 |
Drive Plate
22041-SBH0-0000
|
|||
| 5 |
Roller Comp, Weight Set
22051-SBH0-0000
|
|||
| 6 |
Oil Seal Plate, Drive
22061-SBH0-0000
|
|||
| 7 |
Plate, Ramp
22071-SBH0-0000
|
|||
| 8 |
Piece, Ramp Plate
22081-SBH0-0000
|
|||
| 9 |
O-ring 100*2.6
91301-SBH0-0000
|
|||
| 10 |
Seal, Oil
91206-SBH0-0000
|
|||
| 11 |
Screw, Panhead
93600-05010
|
|||
| 12 |
Washer,Stop
94110-14E01-ST
|
$2.09 | ||
| 13 |
Nut, Flange M14*1.5
90200-14E02-0A
|
