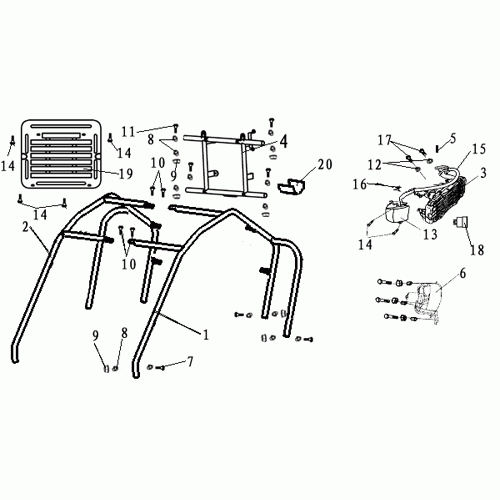

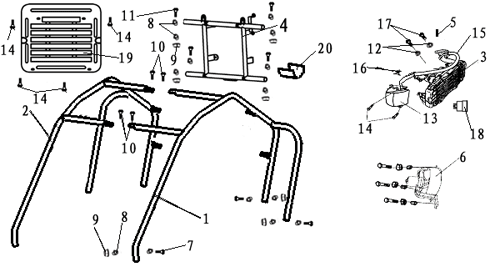

Brush Guard Bar (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Brush Guard Bar, Long Left
50110-BDE0-E000
|
|||
| 2 |
Brush Guard Bar, Long Right
50120-BDE0-E000
|
|||
| 3 |
Radiator Comp.
19010-BDA0-0010
|
$111.75 | ||
| 4 |
Support, Radiator
50150-BDE0-0000
|
|||
| 5 |
Washer, Flat
94110-06B01-0C
|
|||
| 6 |
Fan, Cooling
19032-BDB0-0000
|
|||
| 9 |
Lock Nut,Flange
90210-08B01-2B
|
|||
| 10 |
Screw, Socket-head M8*20
96050-08020-1B
|
|||
| 11 |
Bolt, Flange
95710-08045-1B
|
$1.39 | ||
| 13 |
Water Tank, Sub
19100-SBH0-0000
|
|||
| 14 |
Bolt, Flange
90130-06014-0C
|
|||
| 15 |
Pipe, Sub Water Tank
19507-BDE0-0000
|
$11.30 | ||
| 16 |
Clamp
19604-SBH0-0000
|
$1.74 | ||
| 17 |
Bolt,Flange
95710-06035-0C
|
|||
| 18 |
Thermoswitch
37751-SBH0-0010
|
|||
| 19 |
Protective cover, Water tank
81010-BDB0-0000
|
$57.49 | ||
| 20 |
Damping Block, Water Tank
19011-BDE0-0000
|
