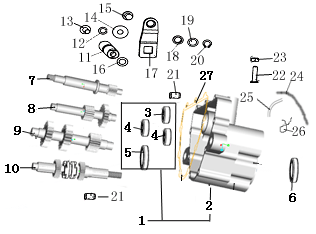

Transmission (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover Comp., Gearbox
2130A-SDB0-0000
|
|||
| 2 |
Cover Comp., Gearbox
21301-SDB0-0000
|
|||
| 3 |
Radial Ball Bearing, 6201C3
96100-62010
|
|||
| 4 |
Radial Ball Bearing, 6202
96100-62020
|
|||
| 5 |
Bearing 6005LLU
96100-60050-T000-LLU
|
|||
| 6 |
Oil Seal 30x47x7
91203-BDA0-0000
|
|||
| 7 |
Shaft, Drive
23411-SDB0-0000
|
|||
| 8 |
Gear, Idle
23420-SDB0-0000
|
|||
| 9 |
Shaft ,Center
23433-SDB0-0000
|
|||
| 10 |
Axle ,Rear Wheel
23440-SDB0-0001
|
|||
| 11 |
Shaft, Gear Shifting York
25504-SDB0-0000
|
|||
| 12 |
Washer, Spring
94120-06F01-0B
|
|||
| 13 |
Bolt, Flange M6x16
95710-06016-0B
|
|||
| 14 |
Washer, Flat
90403-BCC0-0000-0E
|
|||
| 15 |
Pin ,Gear Shifting
25502-BCC0-0000
|
|||
| 16 |
O-ring
91311-MAA0-0000
|
|||
| 17 |
Fork
25501-SDB0-0000
|
|||
| 18 |
Sleeve, Gear Shifting Pin
25503-BCC0-0000
|
|||
| 19 |
Washer, Flat
90404-BCC0-0000-0E
|
|||
| 20 |
Circlip, Shaft 8
94501-08000-0E
|
