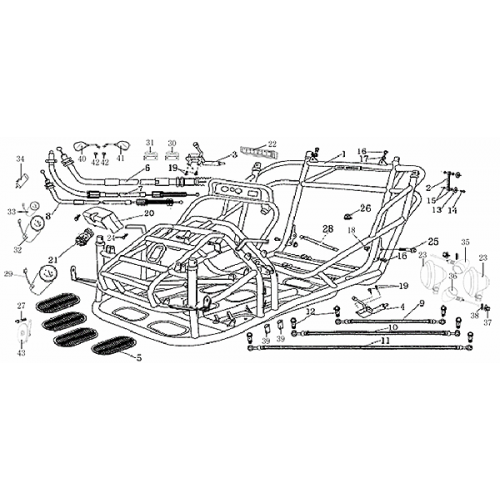

Frame Composition (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame, Main
50100-BCD1-E000
|
|||
| 2 |
Connecting Rod
55000-BCA0-0000
|
$16.69 | ||
| 3 |
Handle Assy., Brake
53180-BCD0-0000
|
$46.82 | ||
| 4 |
Handle Bar, Reverser
53170-BCD0-0000
|
$51.98 | ||
| 5 |
Foot Pedal, Rubber
53360-BCA0-0000
|
|||
| 6 |
Cable, Throttle
17910-BCD0-0000
|
|||
| 7 |
Cable Comp., Reverse
24850-BCC0-0001
|
|||
| 8 |
Cable Comp., Parking Brake
43450-BCD0-0001
|
|||
| 9 |
Brake Hose, L.
45126-BCA0-0000
|
$42.02 | ||
| 10 |
Brake Hose, R.
45127-BCA0-0000
|
$45.62 | ||
| 11 |
Brake Hose, R.
43126-BCA0-0000
|
|||
| 12 |
Bolt, Banjo M10x24
90191-BCA0-0000-0C
|
$4.18 | ||
| 13 |
Washer, Connecting Rod
55002-BCA0-0000
|
|||
| 15 |
Bush, Connecting Rod
55001-BCA0-0000
|
|||
| 16 |
Bolt,Safety Belt
77211-BCA0-0000
|
|||
| 17 |
Bush, Safety Belt
77214-BCA0-0000
|
$0.84 | ||
| 19 |
Bolt, Flange
95710-08016-1B
|
$1.05 | ||
| 20 |
Cover, Switch
50332-BCA0-E001
|
|||
| 21 |
90cc Key Set Ignition Switch
35100-BCA0-E000
|
$36.02 | ||
| 22 |
Unit Switch
3510A-BCA0-E000
|
$104.43 |
