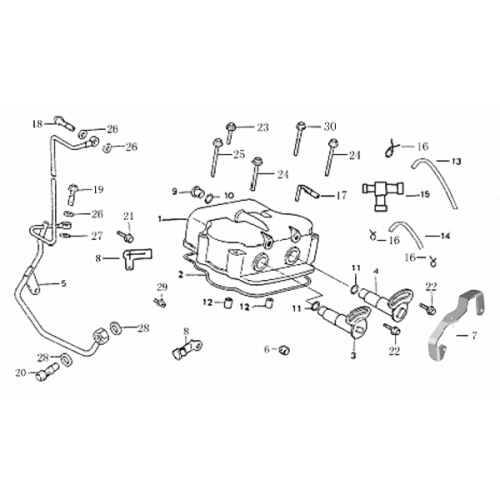

Cylinder Head Cover (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover, Cylinder Head
12310-SCC0-0000
|
|||
| 2 |
Gasket, Cylinder Head Cover
12391-SCC0-0000
|
|||
| 3 |
Rocker Arm Shaft, Air-intake Valve
11450-SCC0-0000
|
|||
| 4 |
Rocker Arm Shaft, Air-exhaust Valve
11452-SCC0-0000
|
|||
| 5 |
Pipe Comp, Oil
15710-SBH0-0000
|
|||
| 6 |
Plug, Choke
12311-SCC0-0000
|
|||
| 7 |
Bracket, Air Cleaner
12313-SBH0-0000
|
|||
| 8 |
Plate ,Pressure
11342-SCC0-0000
|
|||
| 9 |
Cap,A.C. G.
90036-CAA0-0000
|
|||
| 10 |
O-ring13.8*2.5
91306-CAAO-0000
|
|||
| 11 |
O-ring
91301-SCC0-0000
|
|||
| 12 |
Pin, Dowel
94310-10160
|
|||
| 13 |
Air Tube, Right Crankcase Cover
11241-SCC0-0000
|
|||
| 14 |
Air Tube, Cylinder Head Cover
11211-SCC0-0000
|
|||
| 15 |
Air Tube, Three-way
11250-SCC0-0000
|
|||
| 16 |
Clamp
19605-SCC0-0000
|
|||
| 17 |
Breather, Cylinder Head Cover
12309-SCC0-0000
|
|||
| 18 |
Bolt A, Oil Pass
90161-SBH0-0000-0D
|
|||
| 19 |
Bolt B, Oil Pass
90162-SBH0-0000-0D
|
|||
| 20 |
Bolt C, Oil Pass
90163-SBH0-0000-0D
|
