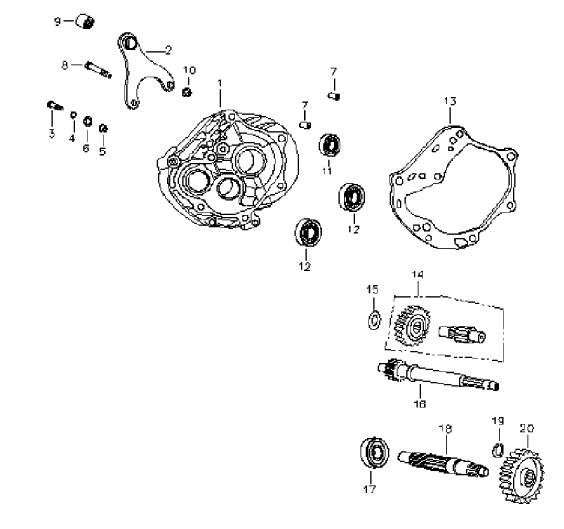

Transmission (Bombardier Mini DS 90 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover
A21301175000
|
$44.12 | ||
| 2 |
Bracket
A11202175000
|
$20.10 | ||
| 3 |
Fix Shaft
A45110175000
|
$15.82 | ||
| 4 |
Oil Ring
A91307101000
|
$0.84 | ||
| 5 |
Hex. Flanged Nut With Serration M8
A9405008000
|
$0.70 | ||
| 6 |
Washer Plain
A941010816020
|
$0.50 | ||
| 7 |
Dowel Pin
A9430110200
|
$1.34 | ||
| 8 |
Fix Shaft
A45111175000
|
$5.86 | ||
| 9 |
Rubber Bushing
A96400102820
|
$4.18 | ||
| 10 |
Scotch Flanged Nut M14
A940521400021
|
$4.18 | ||
| 11 |
Radial Ball Bearing (6004Lu)
A961006004U
|
$18.45 | ||
| 12 |
Radial Ball Bearing (6201)
A9610062010
|
$8.37 | ||
| 13 |
Mission Cover Gasket
A21395133000
|
$7.32 | ||
| 14 |
Main Shaft
A23420133000
|
$49.80 | ||
| 15 |
Washer Plain
A941021220013
|
$5.58 | ||
| 16 |
Drive Shaft
A23411133000
|
$40.97 | ||
| 17 |
Oil Ring
A9650027427
|
$2.02 | ||
| 18 |
Final Shaft
A23431175000
|
|||
| 19 |
External Circlip
A945112000S
|
$1.39 | ||
| 20 |
Final Gear
A23432133000
|
$49.80 |
