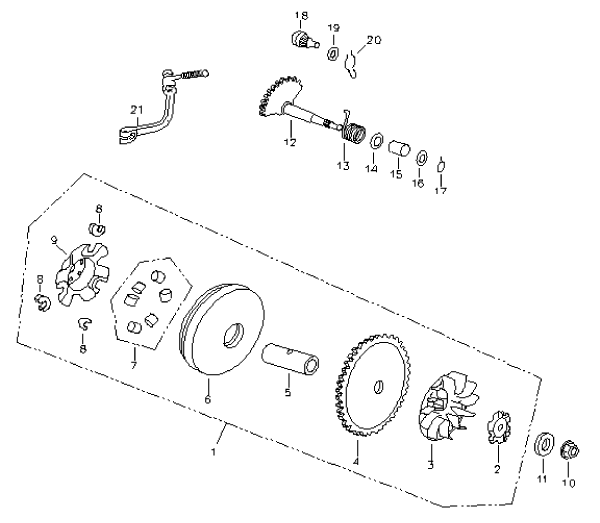

Pulley Driven Face (Bombardier Mini DS 90 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Pulley Assy
DS90-4-PULLEY ASSY
|
|||
| 2 |
Kick Starter Ratchet
A22140133000
|
$16.74 | ||
| 3 |
Cooling Fan
A22106133000
|
$12.45 | ||
| 4 |
Drive Face
A22102133000
|
$23.72 | ||
| 5 |
Bushing
A964011420385
|
$8.79 | ||
| 6 |
Face Comp Movable Drive
A22110133000
|
|||
| 7 |
Weight Roller Set (6 rollers per set)
A22121175000
|
$15.82 | ||
| 8 |
Side Piece
A22132133000
|
$1.67 | ||
| 9 |
Ramp Plate
A22131133000
|
$10.98 | ||
| 10 |
Hex. Flanged Nut With Serration M12
A9405012000
|
$2.68 | ||
| 11 |
Washer Flat
A941011222020
|
$0.83 | ||
| 12 |
Starter Spindle
A28251133000
|
$23.72 | ||
| 13 |
Starter Spring
A28281133000
|
$5.86 | ||
| 14 |
Kick Boss Collar
A28255133000
|
$3.35 | ||
| 15 |
Bushing
A96401141821
|
$3.49 | ||
| 16 |
Washer Flat
A941011421015
|
$1.26 | ||
| 17 |
Circlip
A945111400S
|
$4.88 | ||
| 18 |
Kick Pignion Assy
A28230133000
|
$25.04 | ||
| 19 |
Washer Flat
A941011017010
|
$0.70 | ||
| 20 |
Clip Pignion Kick
A28223133000
|
$2.79 |
